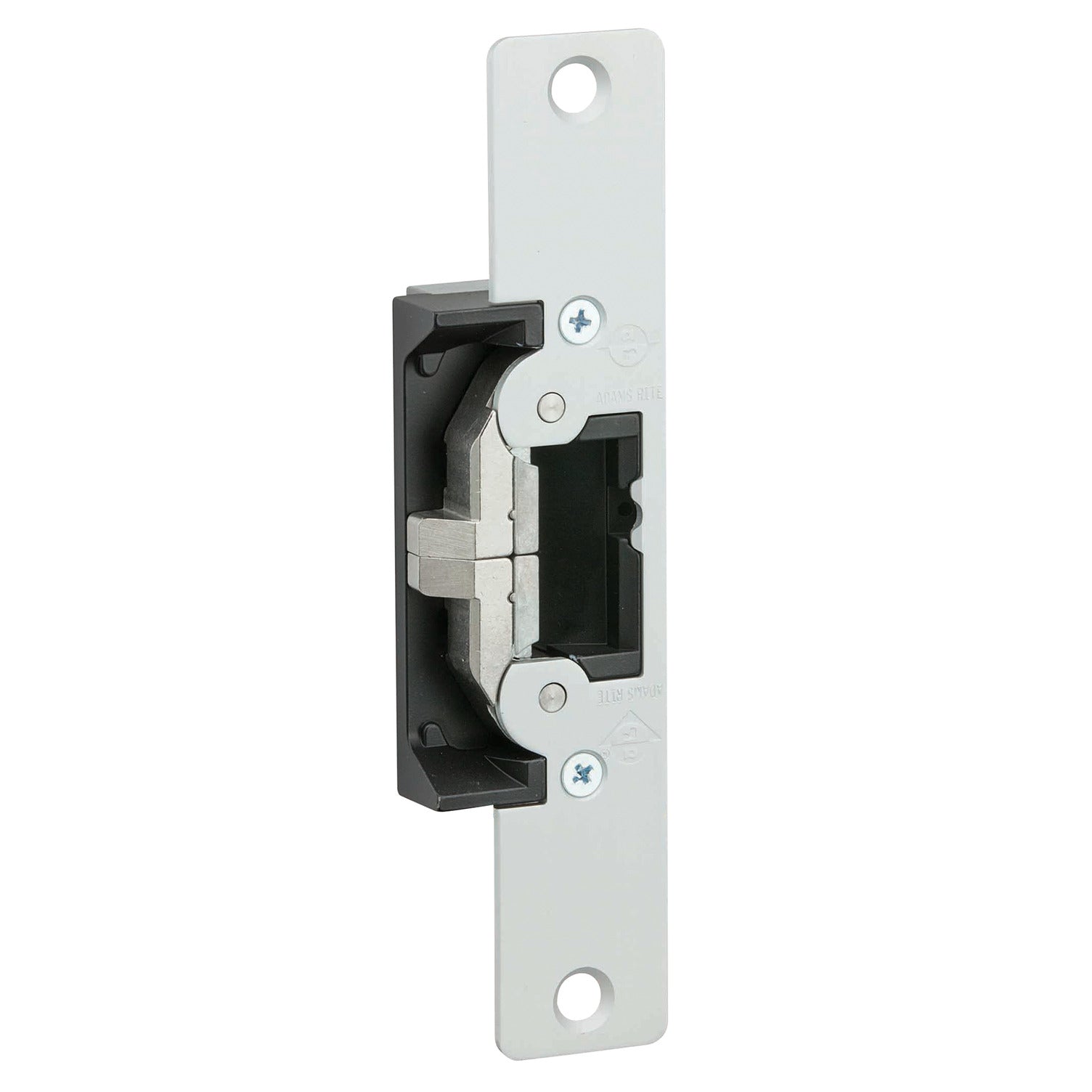

Adams Rite 7430M628
Adams Rite 7430M628
Description
PRODUCT SPECS
SKU 7430M628
Parent Manufacturer Assa Abloy
Manufacturer Adams Rite
Series 7400 Series
Application For DeadLatches or Cylindrical Locksets with 1/2" to 5/8" Throw
Certification ANSI/BHMA A156.31, Grade 1
Country of Origin United States
Fire Rated No
Grade Grade 1
Product Warranty Limited Warranty
UPC 0888512103958
PRODUCT FINISH
Finish 628
Finish Description Aluminum
TECHNICAL SPECS
Base Material Aluminum
Current 163mA @ 12AC, 440mA @ 12 DC, 228mA @ 16 AC, 458mA @ 16 DC*, 84mA @ 24 AC, 230mA @ 24 VDC Current
Door Handing Non-handed
Door Range (Thickness) -
Frame Material Metal
FS/FSE Mode Fail Safe/Fail Secure
Latch Throw (in) 5/8"
Static Holding Strength (lbs) 1500
Voltage 12, 16, 24 VAC/VDC Voltage
PRODUCT DIMENSIONS
Dimensions 1-1/4 x 6-7/8"
PACKAGE DIMENSIONS
Box Depth (#) 3
Box Height (#) 6
Box Weight (#) 2
Box Width (#) 3

Adams Rite

7430M628

Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 6-7/8 In. X 1-1/4 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC, Monitored, Satin Aluminum Clear Anodized
Sale price $273.21
Regular price $498.00
Same Day Fulfillment On In Stock Items

Orders placed before 3:00pm EST will be fulfilled the same day and shipped via your selected shipping method.

7430M628
