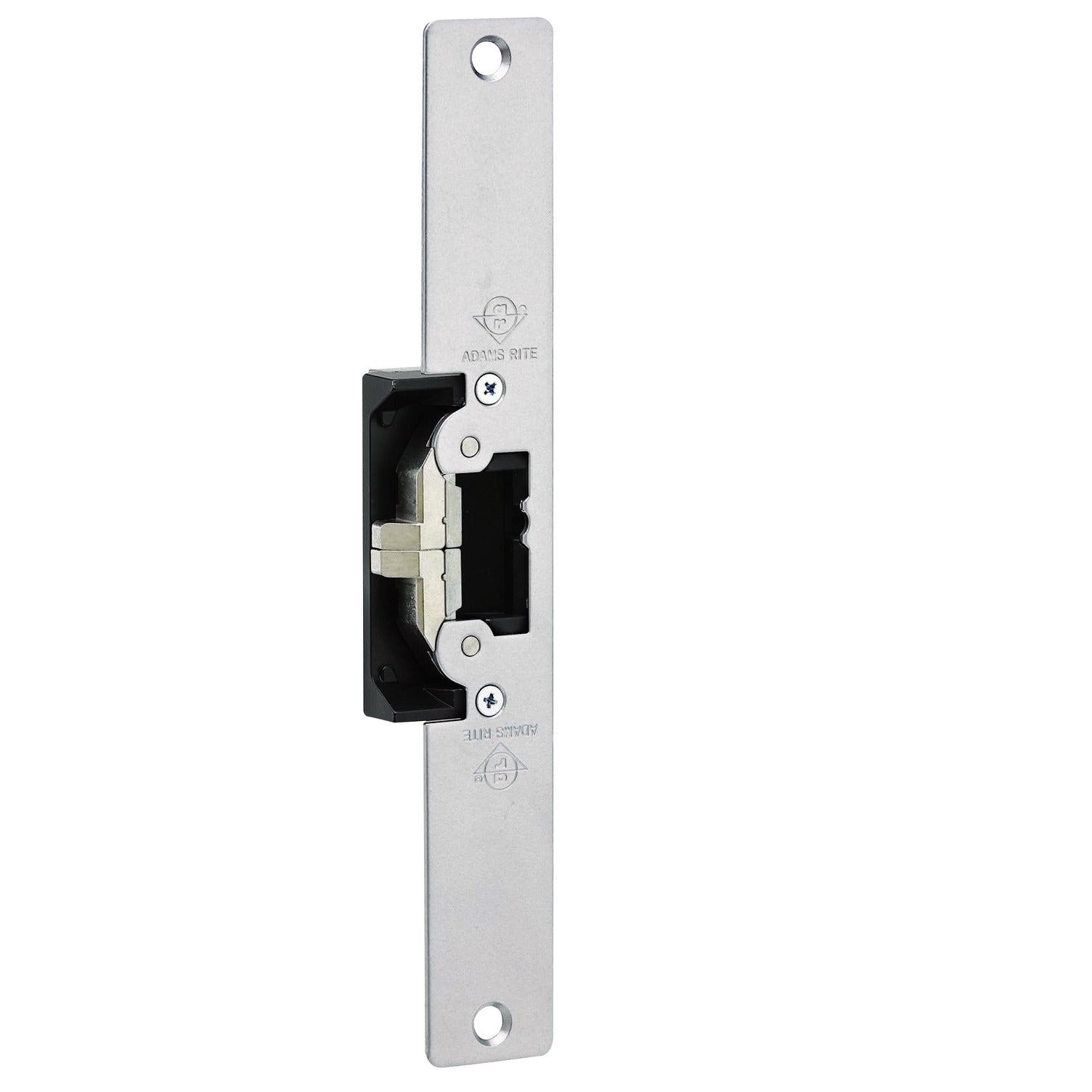

Adams Rite 7411-628 Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Satin Aluminum 7411-628
Sale price
$219.44
Regular price $400.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is an Adams Rite electric strike for aluminum, hollow metal or wood door applications. It can be set in the field for fail safe or fail secure operation. It has a flat faceplate with radius corners and is certified to ANSI/BHMA A156.31 Grade 1. Part 7411-628 is the Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 10-1/4 In. X 1-7/16 In. Flat Faceplate with Radius Corners, 12, 16, 24 VAC/DC version in Satin Aluminum.
- Field Selectable (Fail Safe/Fail Secure)
- For Aluminum
- Hollow Metal or Wood Applications
- 10-1/4 In. X 1-7/16 In. Flat Faceplate with Radius Corners
- 12
- 16
- 24 VAC/DC
- Finish 628 Satin Aluminum
- Grade 1
- ANSI/BHMA A156.31, Grade 1
- Part number 7411-628
| PRODUCT SPECS | |
|---|---|
| SKU | 7411-628 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 7400 Series |
| Application | For DeadLatches or Cylindrical Locksets with 1/2" to 5/8" Throw |
| Certification | ANSI/BHMA A156.31, Grade 1 |
| Country of Origin | United States |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | Limited Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 628 |
| Finish Description | Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Aluminum |
| Current | 163mA @ 12AC, 440mA @ 12 DC, 228mA @ 16 AC, 458mA @ 16 DC*, 84mA @ 24 AC, 230mA @ 24 VDC Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frame Material | Wood |
| FS/FSE Mode | Fail Safe/Fail Secure |
| Latch Throw (in) | 5/8" |
| Static Holding Strength (lbs) | 1500 |
| Voltage | 12, 16, 24 VAC/VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 1-7/16" x 7-15/16" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 3 |
| Box Height (#) | 6 |
| Box Weight (#) | 2 |
| Box Width (#) | 3 |
