Details
Overview

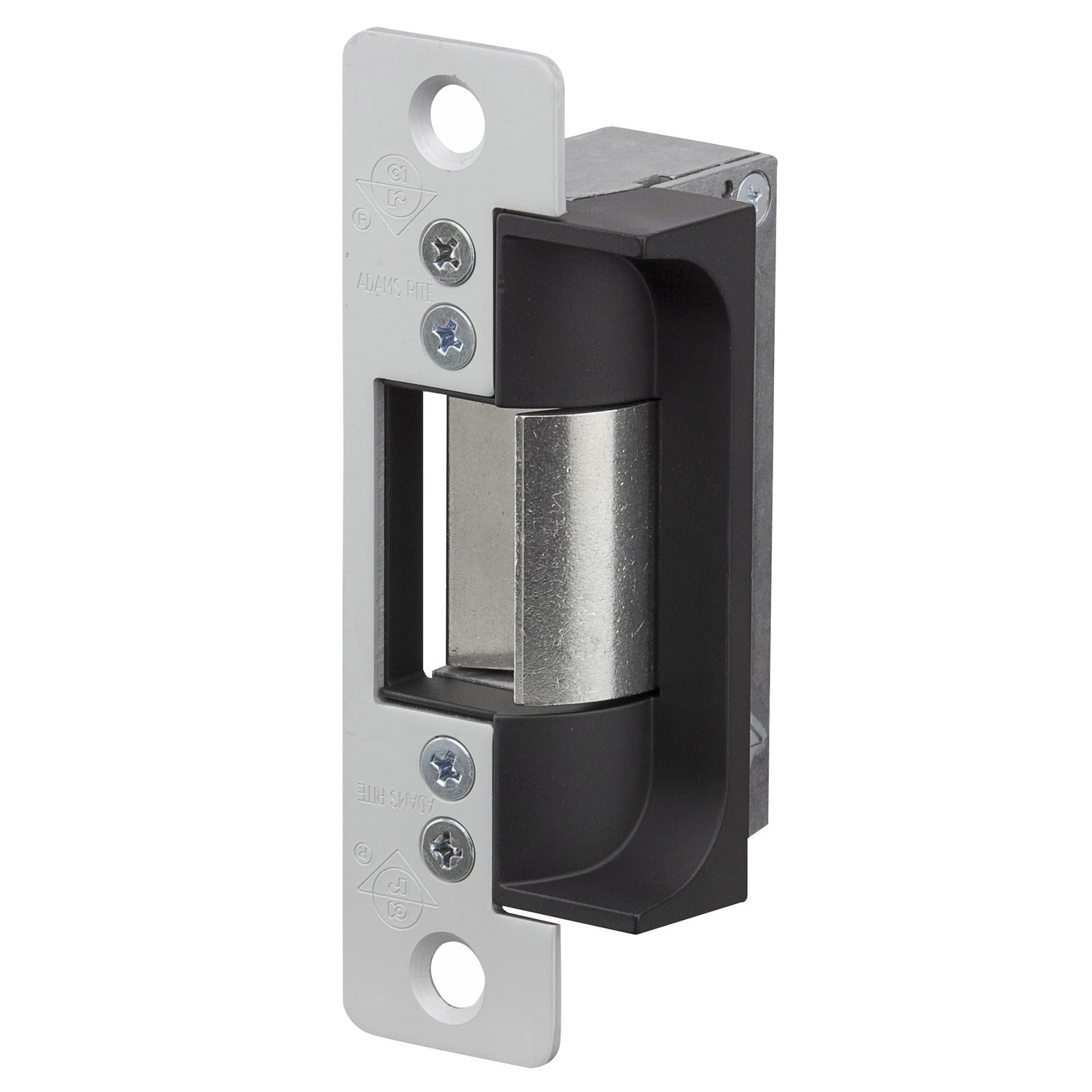

The Adams Rite 7160 is an electric strike for aluminum door applications. It mounts in the door frame and releases the latch by electric control so the door can be opened from the secure side without a key. It has a flat faceplate with radius corners. Part 7160-510-628-00 is the Electrically Unlocked (Fail Secure), For Aluminum Applications, 4-7/8 In. X 1-1/4 In. Flat Faceplate with Radius Corners, 24VDC version in Satin Aluminum.
- Electrically Unlocked (Fail Secure)
- For Aluminum Applications
- 4-7/8 In. X 1-1/4 In. Flat Faceplate with Radius Corners
- 24VDC
- Finish 628 Satin Aluminum
- UL1034 Listed, UL394 Listed
- Part number 7160-510-628-00
| PRODUCT SPECS | |
|---|---|
| SKU | 7160-510-628-00 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 7160 Series |
| Application | For DeadLatches or Cylindrical Locksets with 1/2" to 5/8" Throw |
| Certification | UL1034 Listed, UL394 Listed |
| Country of Origin | United States |
| Fire Rated | No |
| Grade | Not Graded |
| Product Warranty | Limited Warranty |
| UPC | 0888512103460 |
| PRODUCT FINISH | |
|---|---|
| Finish | 628 |
| Finish Description | Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Aluminum |
| Current | 170mA Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frame Material | Metal/Wood |
| FS/FSE Mode | Fail Secure |
| Latch Throw (in) | 5/8" |
| Static Holding Strength (lbs) | 1500 |
| Voltage | 24VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 1-1/4 x 4-7/8" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 3 |
| Box Height (#) | 6 |
| Box Weight (#) | 1 |
| Box Width (#) | 3 |
