Details
Overview

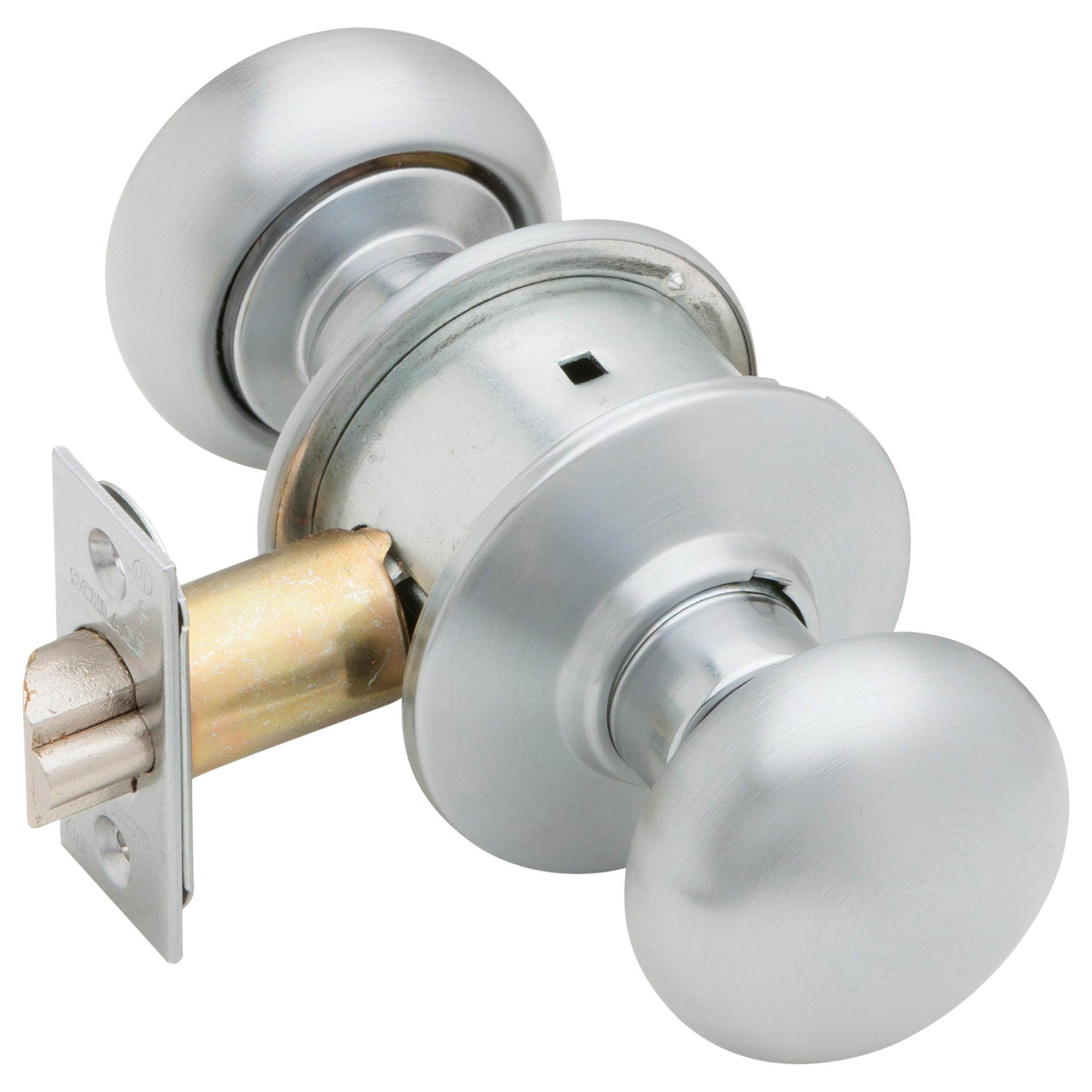

The A10S is a passage cylindrical lock from the Schlage A Series. It latches a door closed and opens freely from either side with no key. It suits interior doors such as hallways, closets and common rooms. Schlage is an Allegion brand. Part A10S PLY 626 is the Plymouth Knob, Non-Keyed version in Satin Chrome.
- Plymouth Knob
- Non-Keyed
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- Part number A10S PLY 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| ADA | No |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 3 Year Limited Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | A10S PLY 626 |
| Series | A Series |
| Main Category | Locksets |
| Sub-Category 1 | Cylindrical |
| Backset (#) | 2.375 |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Electronic | No |
| Function | Passage |
| Keyway | Not Applicable |
| Latch Throw (#) | 0.5 |
| Latch Bore Diameter (#) | 0.875 |
| Latch Description | Spring Latch |
| Latch Dimensions | 1" x 2-1/4" |
| Latch Number | 11-068 |
| Maximum Door Thickness (#) | 1.825 |
| Minimum Door Thickness (#) | 1.375 |
| Strike Description | T-Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 2.875 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 8.25 |
| Box Height (#) | 4.375 |
| Box Weight (#) | 1.4 |
| Box Width (#) | 3.25 |
