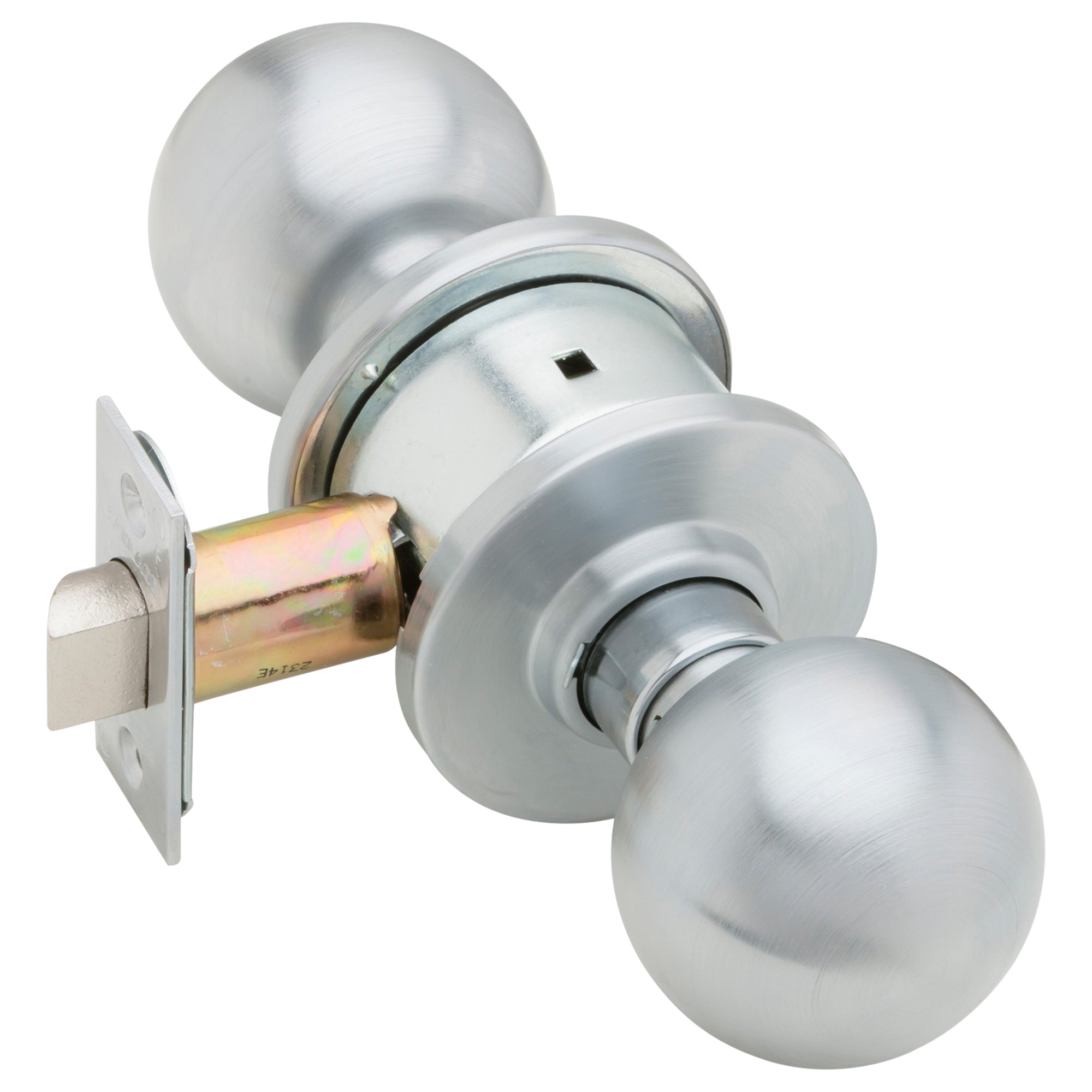

Schlage A10S Grade 2 Passage Cylindrical Lock, Orbit Knob, Non-Keyed, Satin Chrome A10S ORB 626
Sale price
$117.21
Regular price $196.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The A10S is a passage cylindrical lock from the Schlage A Series. It latches a door closed and opens freely from either side with no key. It suits interior doors such as hallways, closets and common rooms. Schlage is an Allegion brand. Part A10S ORB 626 is the Orbit Knob, Non-Keyed version in Satin Chrome.
- Orbit Knob
- Non-Keyed
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- Part number A10S ORB 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| ADA | No |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 3 Year Limited Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | A10S ORB 626 |
| Series | A Series |
| Main Category | Locksets |
| Sub-Category 1 | Cylindrical |
| Backset (#) | 2.375 |
| Batteries Included | No |
| Battery Operated | No |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Electronic | No |
| Function | Passage |
| Keyway | Not Applicable |
| Latch Throw (#) | 0.5 |
| Latch Bore Diameter (#) | 0.875 |
| Latch Description | Spring Latch |
| Latch Dimensions | 1" x 2-1/4" |
| Latch Number | 11-068 |
| Maximum Door Thickness (#) | 1.825 |
| Minimum Door Thickness (#) | 1.375 |
| Strike Description | T-Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 2.875 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 8.25 |
| Box Height (#) | 4.375 |
| Box Weight (#) | 1.4 |
| Box Width (#) | 3.25 |
