Von Duprin 9847EO-F Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48 Fire-rated Device, Satin Chrome 9847EO-F 4 26D LBR
  • Von Duprin 9847EO-F Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48 Fire-rated Device, Satin Chrome 9847EO-F 4 26D LBR
Von Duprin 9847EO-F Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48 Fire-rated Device, Satin Chrome 9847EO-F 4 26D LBR
Von DuprinSKU 9847EO-F 4 26D LBR

Von Duprin 9847EO-F Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48 Fire-rated Device, Satin Chrome 9847EO-F 4 26D LBR

$2,671.68  $4,048.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

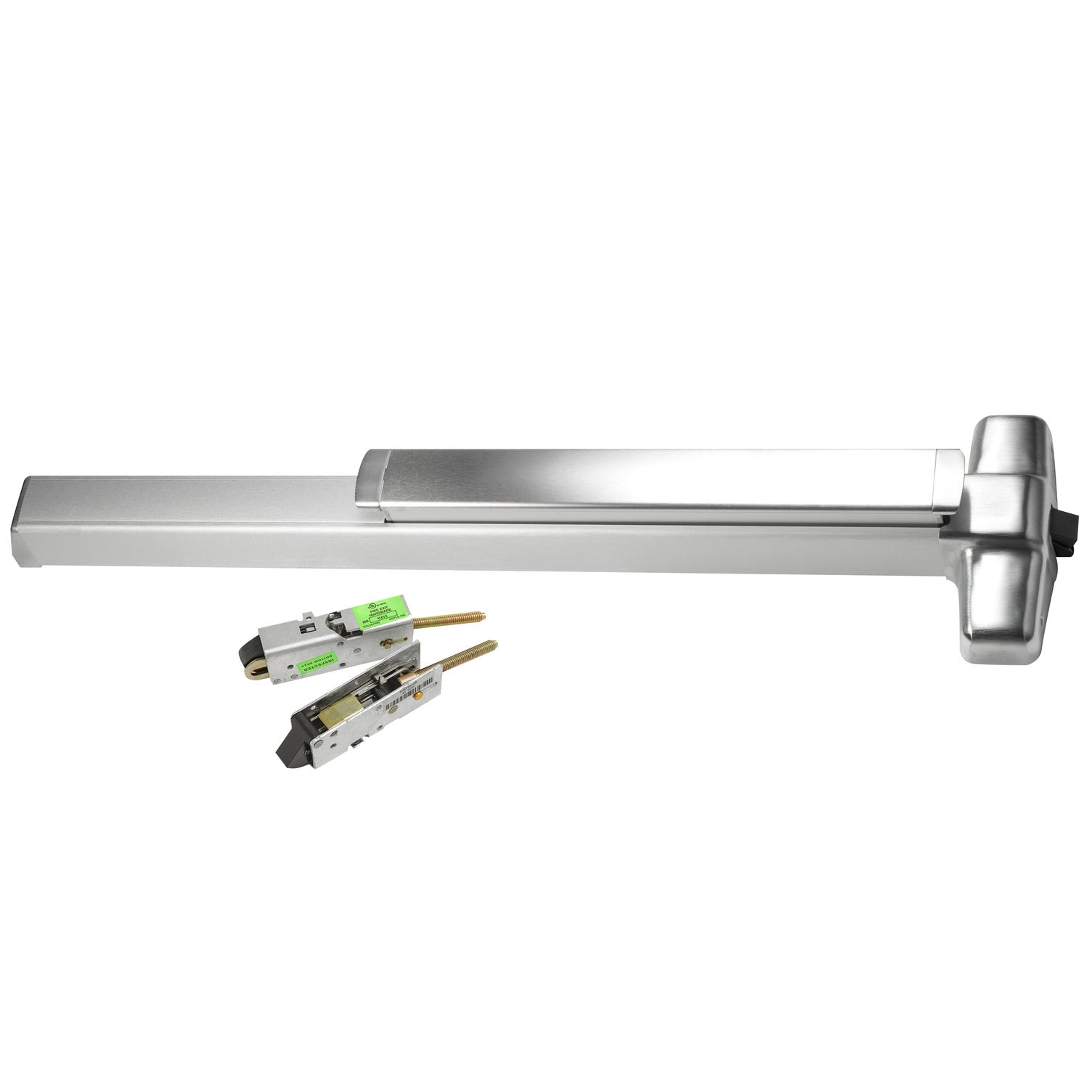

This is a Von Duprin 98 Series concealed vertical rod exit bar with a wide stile pushpad. It mounts on doors with wide stiles and is field reversible. It is an exit only device for egress doors. Von Duprin is an Allegion brand. Part 9847EO-F 4 26D LBR is the Wide Stile Pushpad, 48 Fire-rated Device, 80 to 100 Door Height, Exit Only, Less Bottom Rod, Less Dogging, Field Reversible version in Satin Chrome.

  • Wide Stile Pushpad
  • 48 Fire-rated Device
  • 80 to 100 Door Height
  • Exit Only
  • Less Bottom Rod
  • Less Dogging
  • Field Reversible
  • Finish 26D Satin Chrome
  • Grade 1
  • Fire rated: Yes
  • Part number 9847EO-F 4 26D LBR
PRODUCT SPECS
Manufacturer Von Duprin
Commercial/Residential Light Duty Commercial
Country of Origin United States
Fire Rated Yes
Grade Grade 1
Product Warranty 3 Year Warranty
PRODUCT FINISH
Finish US26D
Finish Description Satin Chrome
TECHNICAL SPECS
SKU 9847EO-F 4 26D LBR
Series 98 Series
Main Category Exit Devices
Sub-Category 1 Exit Device Only
Base Material Brass Bronze
Cylinder Type Keyless
Dogging Option No
Dogging Type Not Applicable
Door Handing Non-handed
Door Material Metal/Wood
Door Range (Thickness) 1-3/4" - 2-1/8"
Door Width Maximum (#) 48
Door Width Minimum (#) 34
Electronic No
Function Exit Only
Keyway Not Applicable
Latch Throw (#) 0.625
Latch Description Top Latchbolt
Option 1 (LBR) Less Bottom Rod
Screw Pack Machine Screws
Strike Description Solid Catch Strike
PRODUCT DIMENSIONS
Projection (#) 3.8125
PACKAGE DIMENSIONS
Box Depth (#) 49.25
Box Height (#) 10.5
Box Weight (#) 19
Box Width (#) 5
