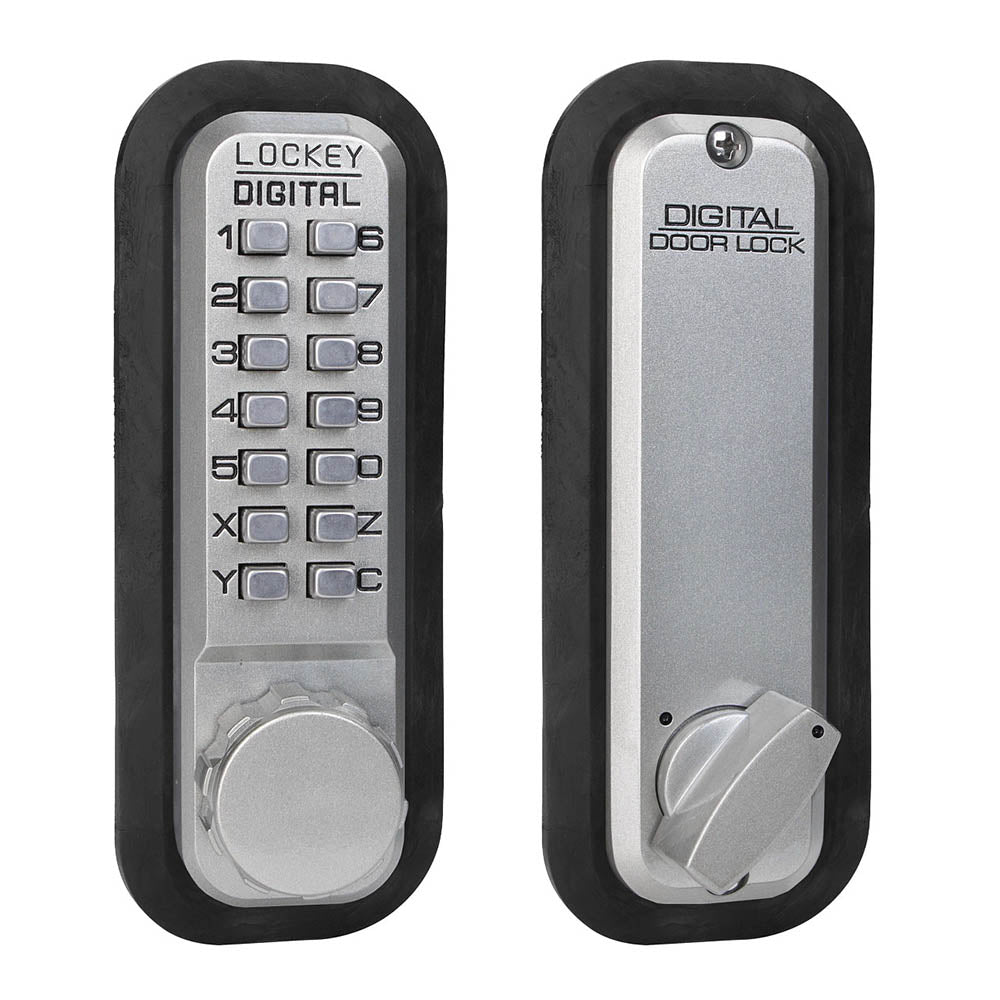

Features

• Mechanical, keyless deadbolt lock
• One user code with thousands of possible combinations
• Knob on exterior
• Changeable handing
• Adjustable deadbolt backset
• Covers standard 2 1/8″ hole

Options

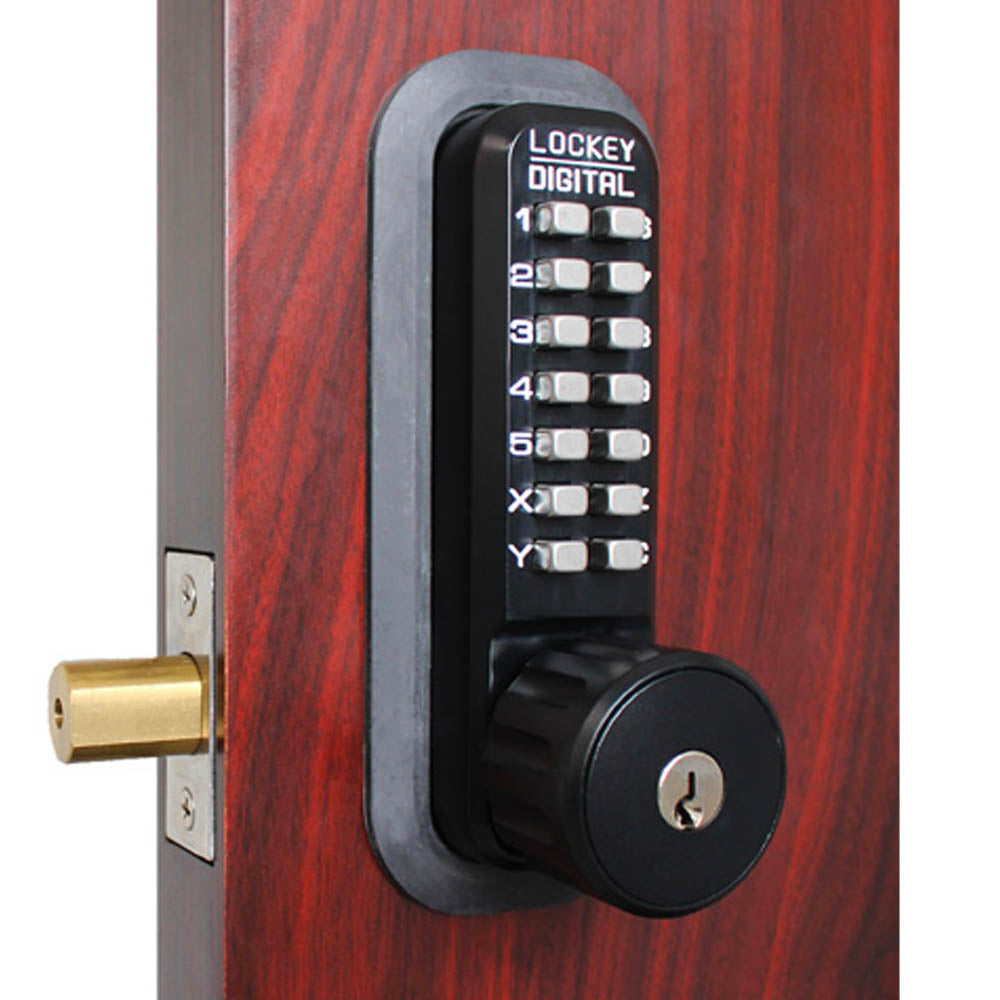

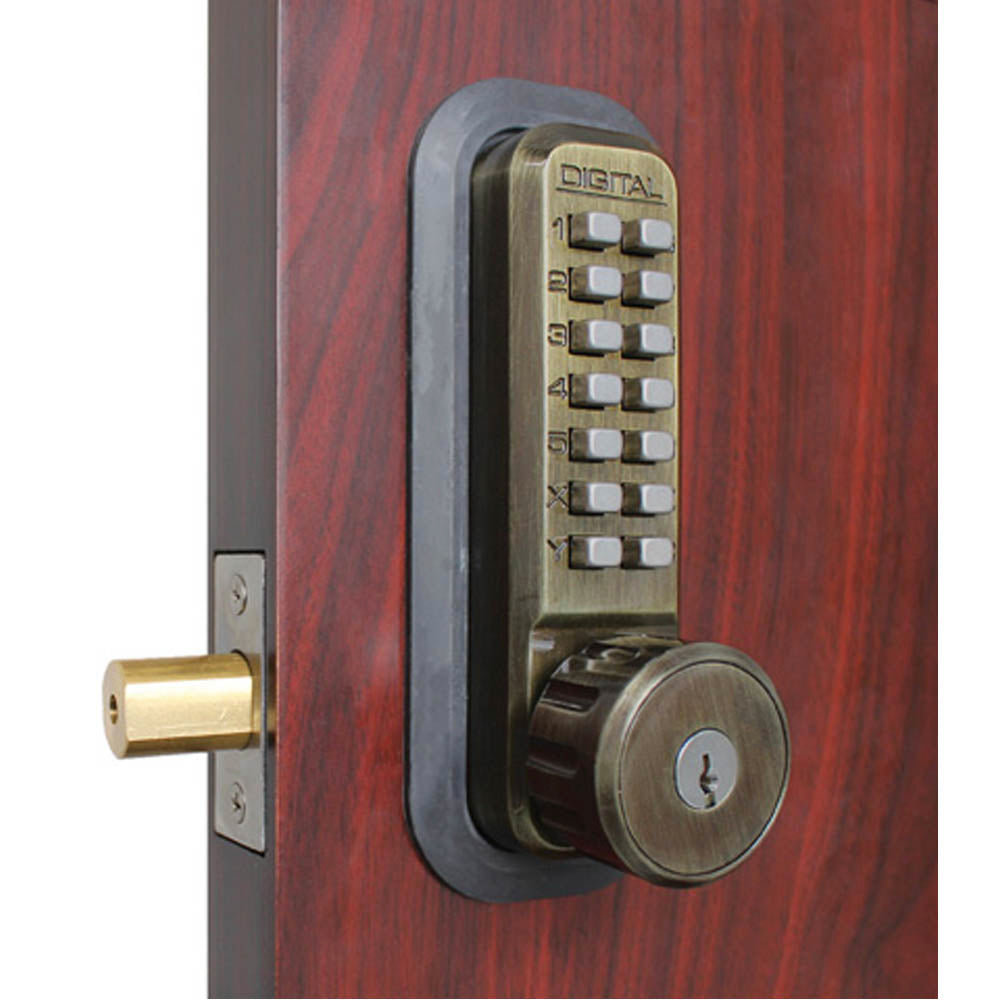

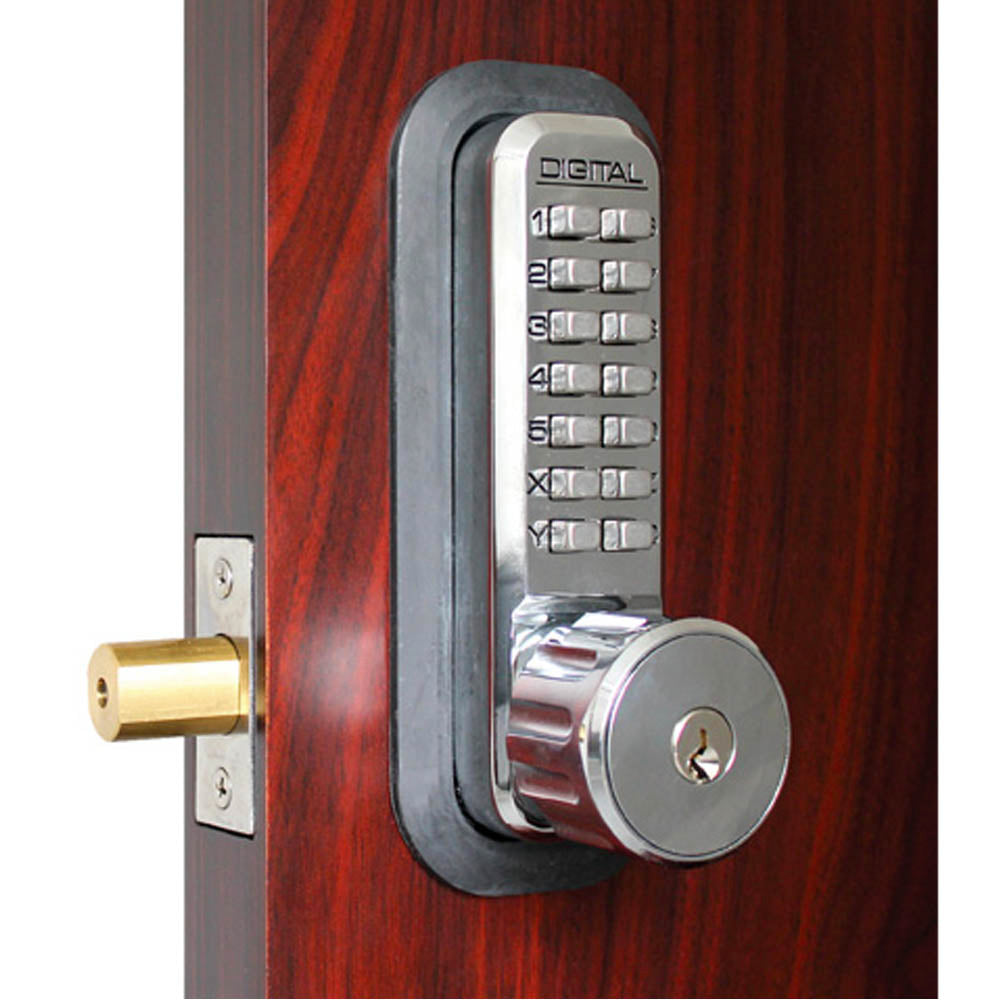

• Key Override Available

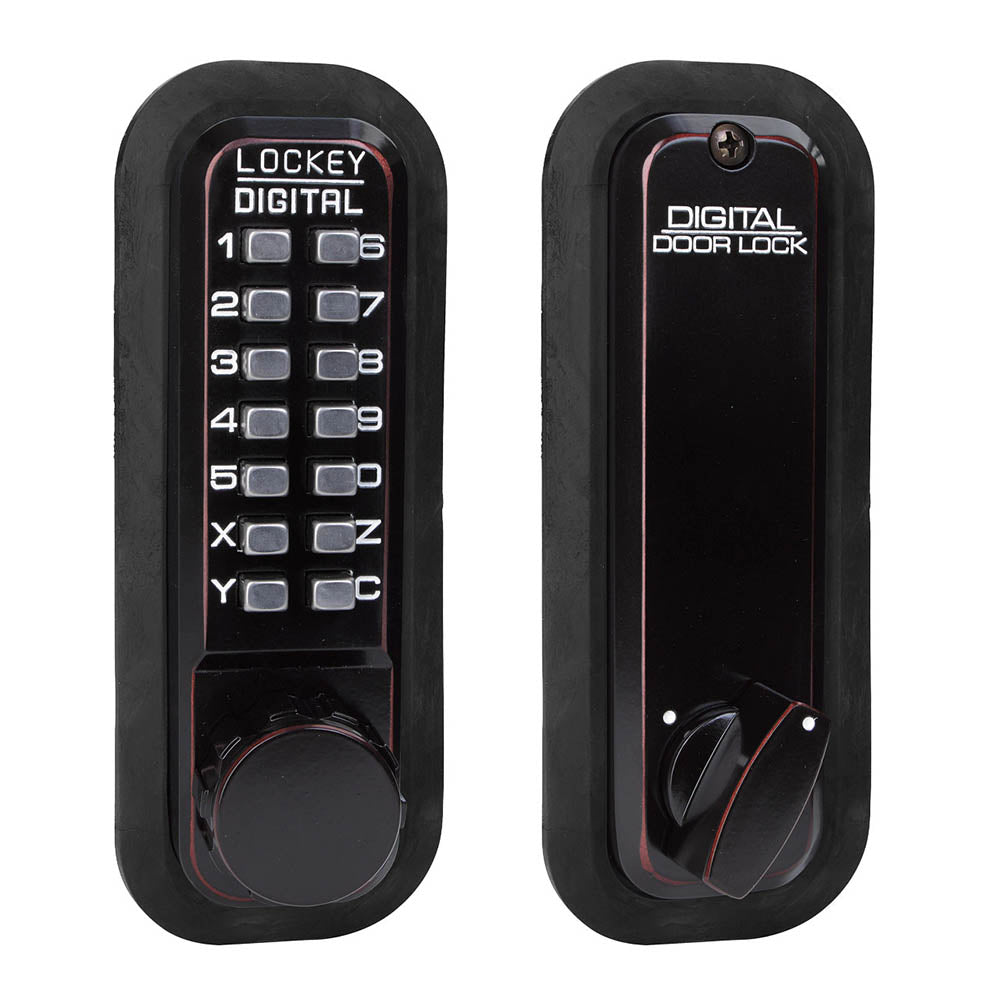

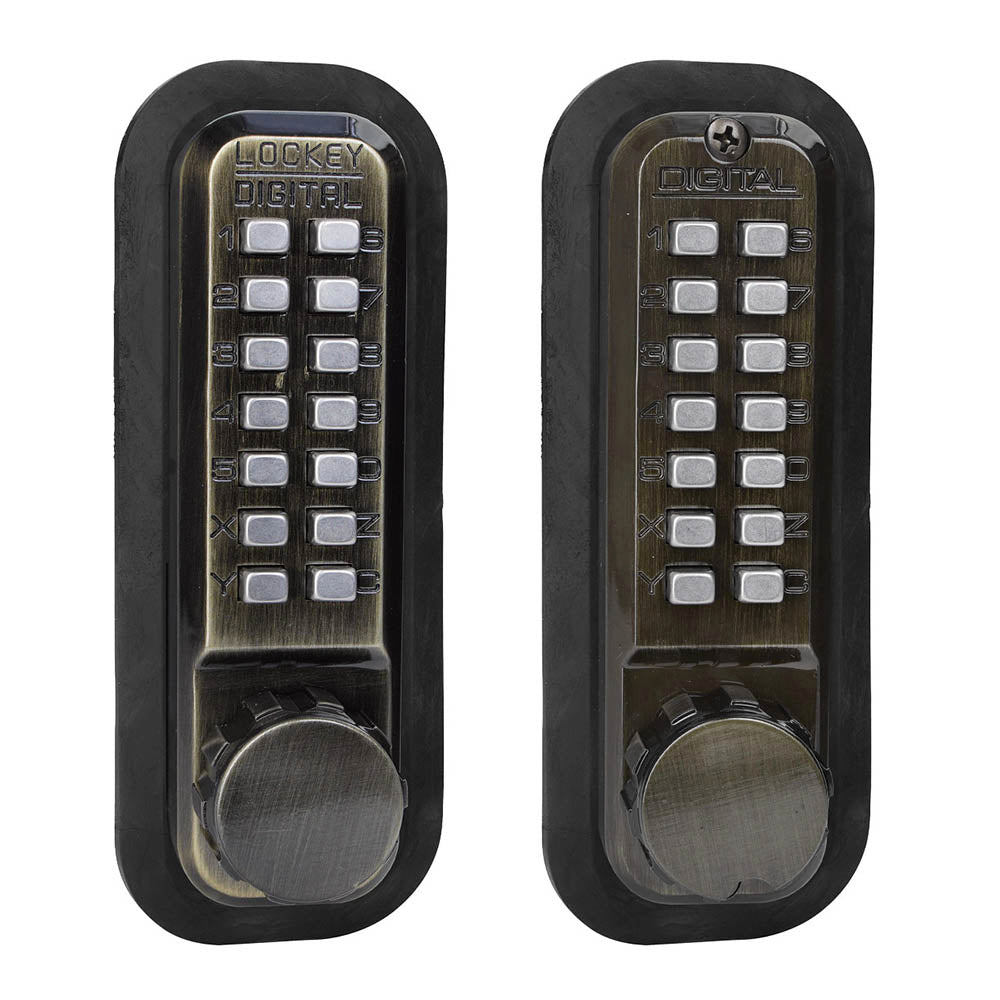

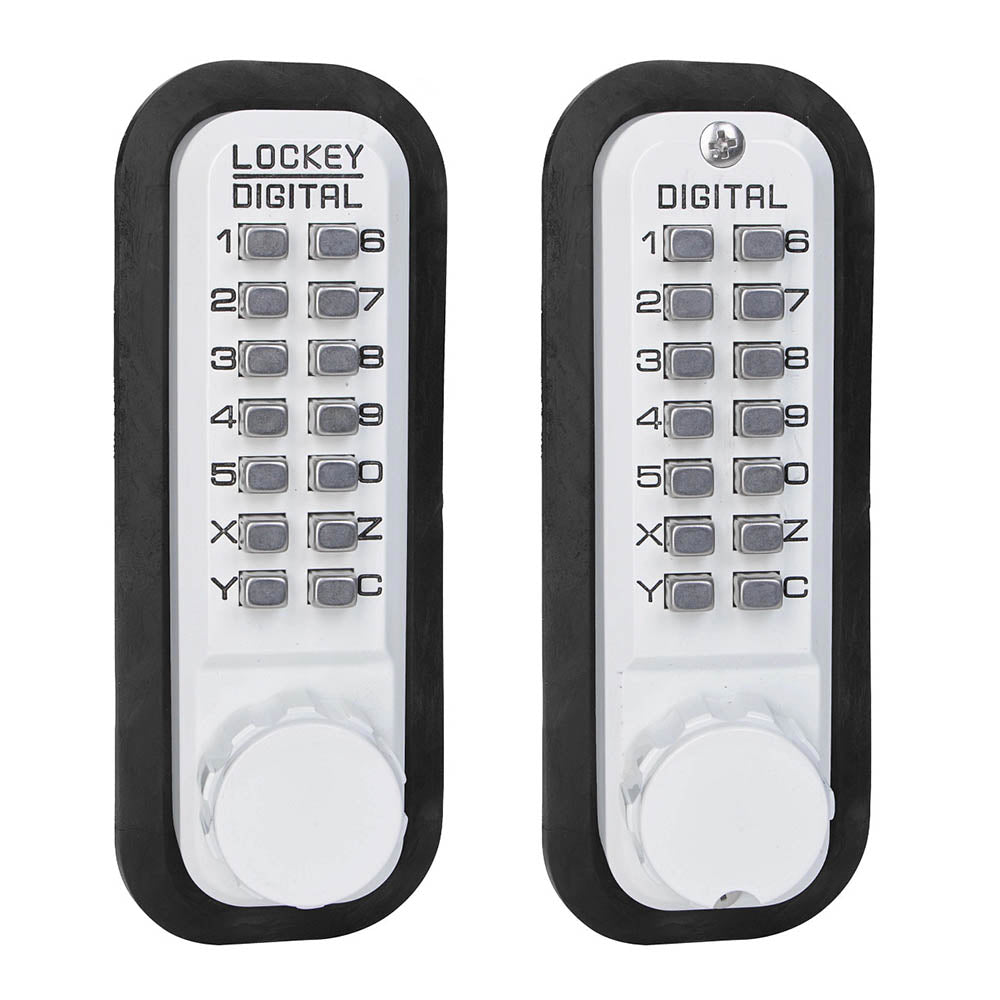

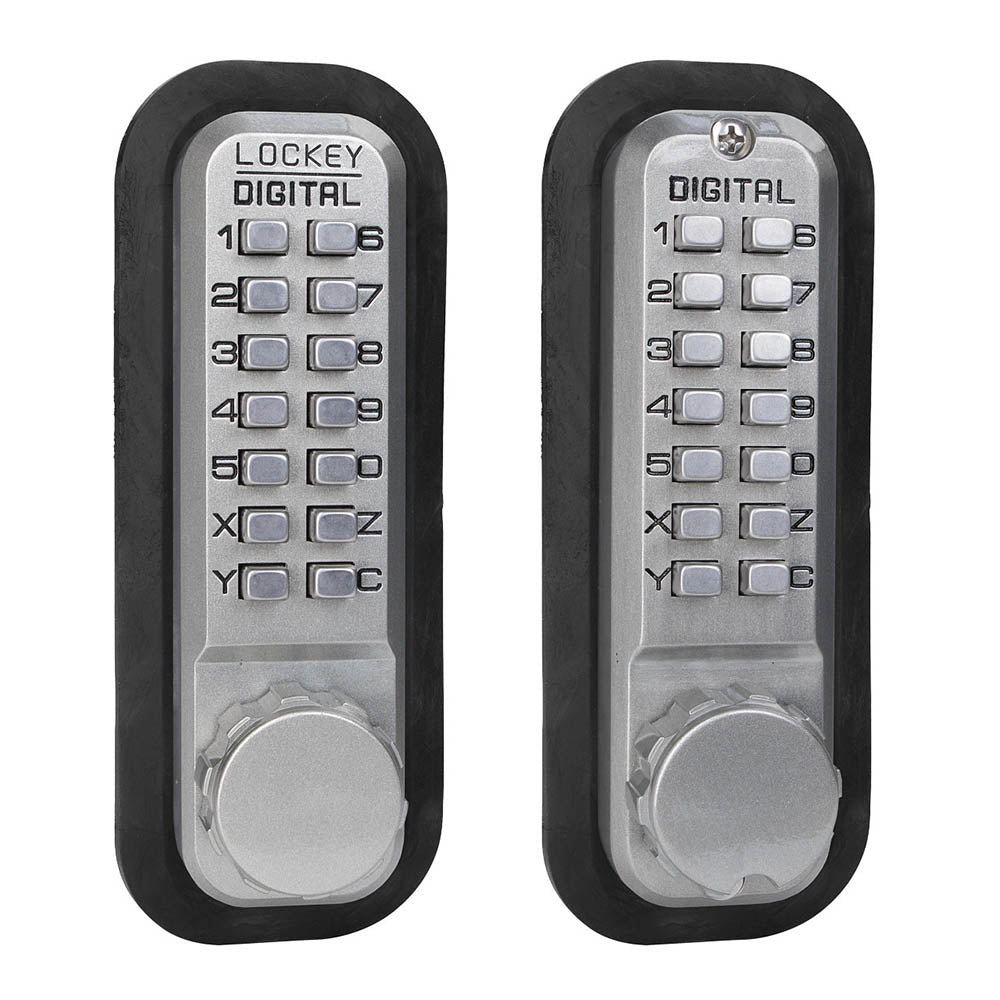

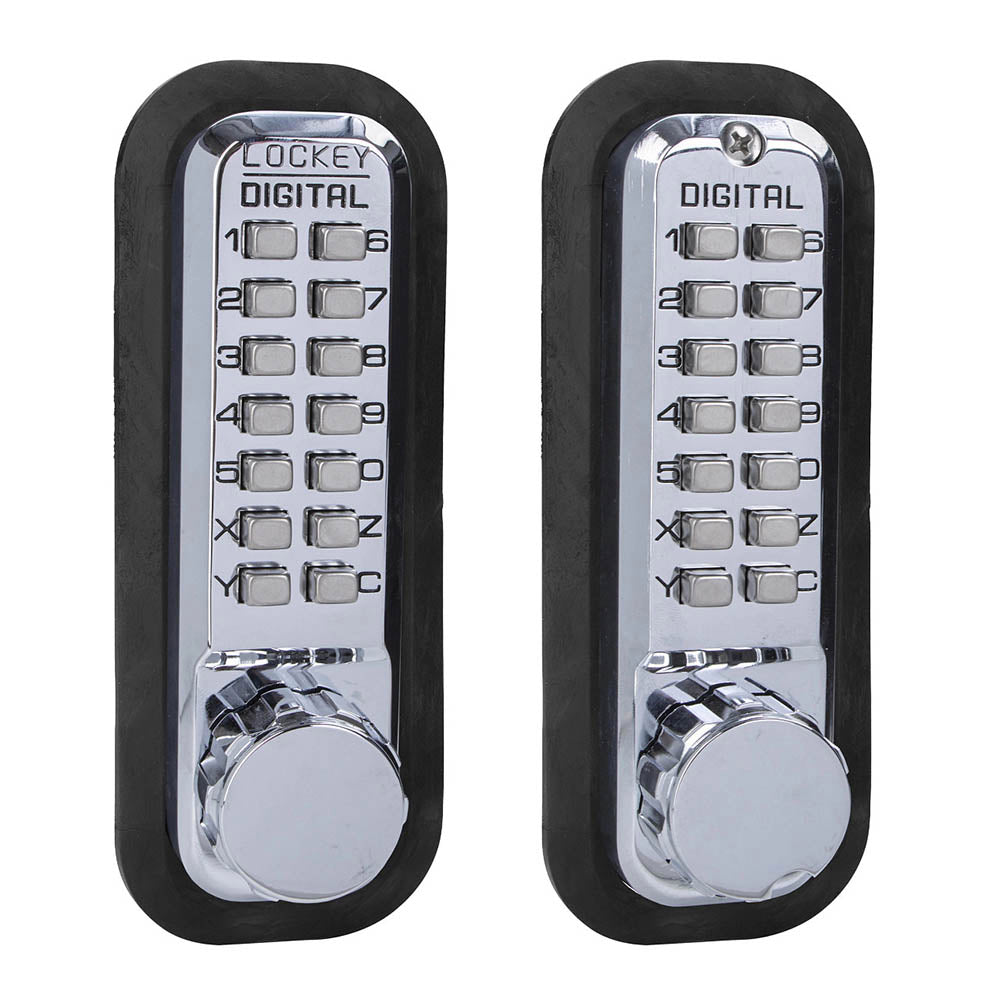

• Keypad: Single Combination, Double Combination (DC)

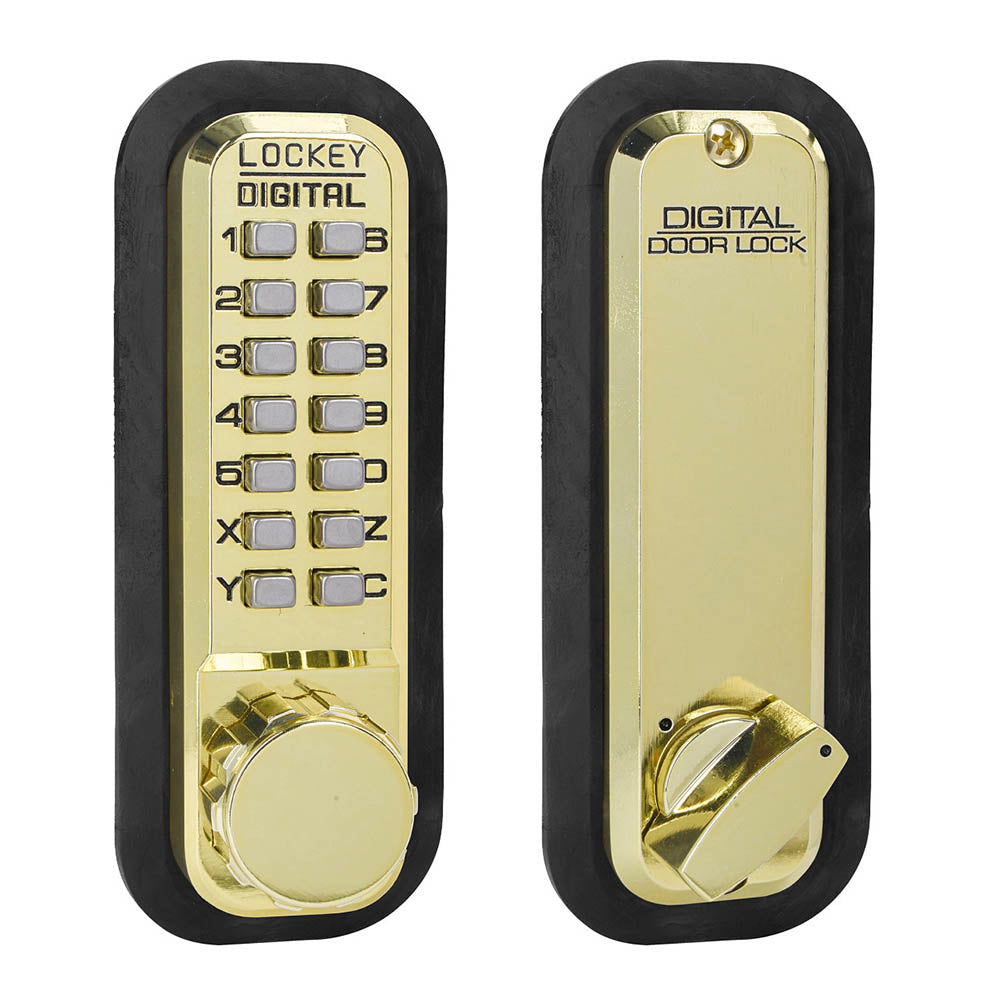

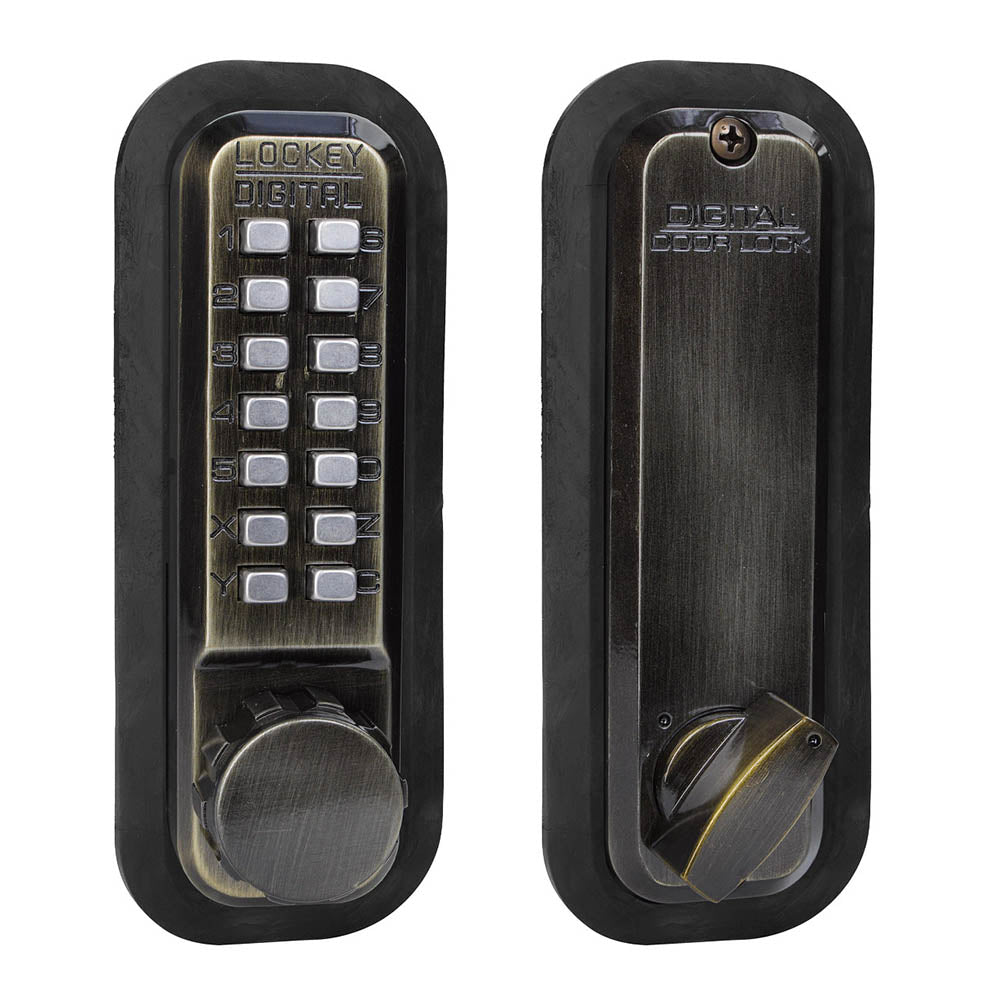

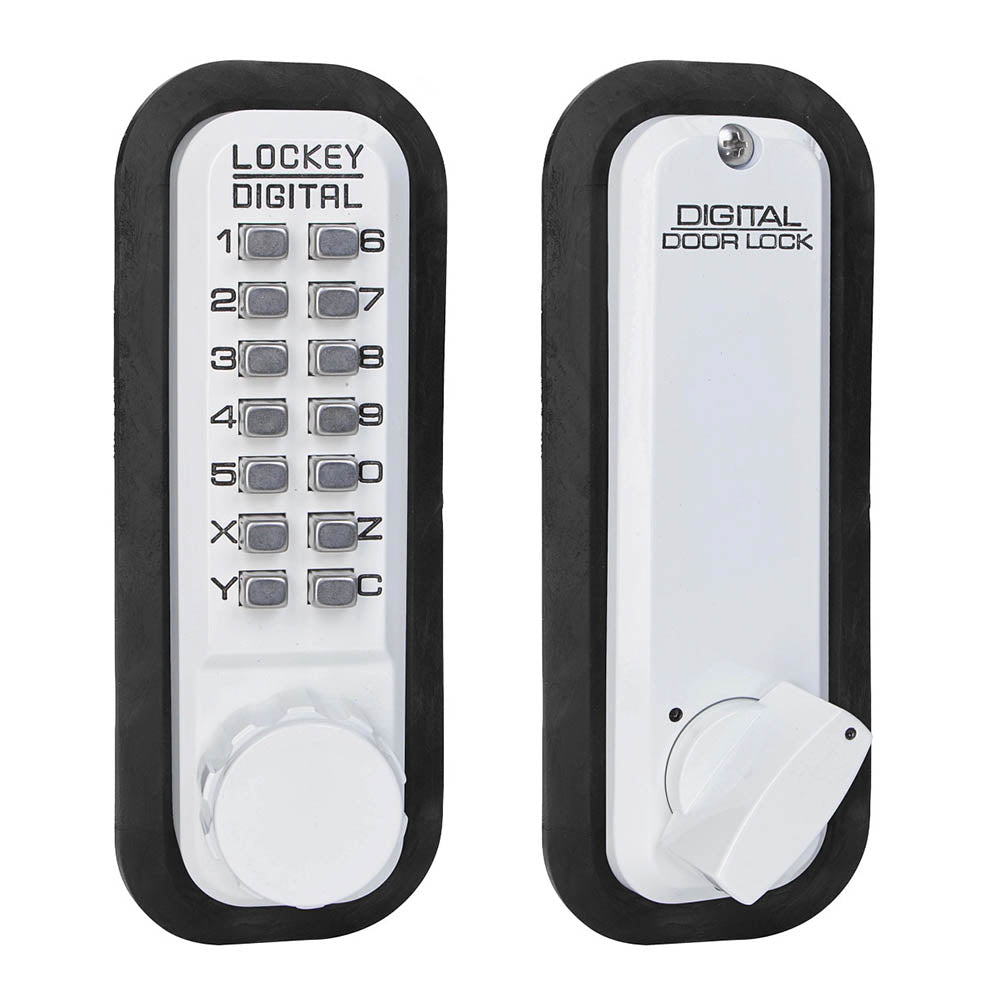

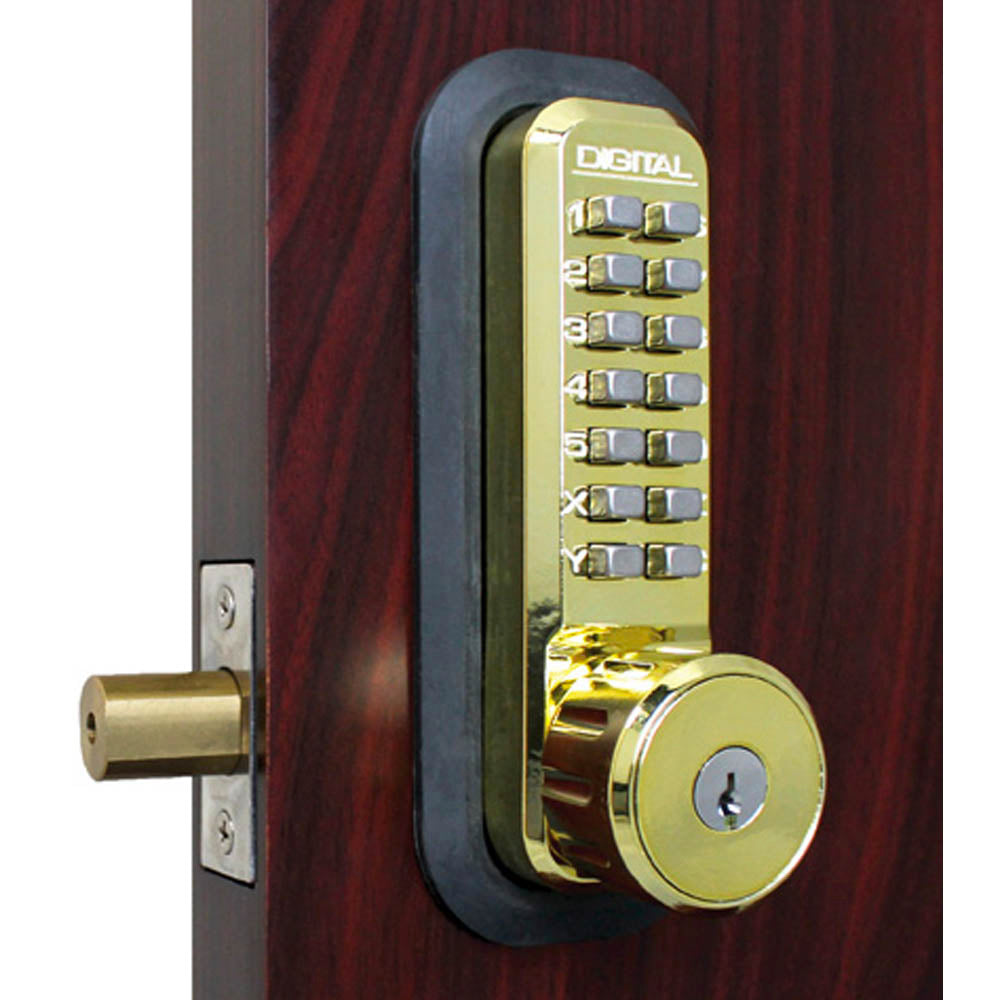

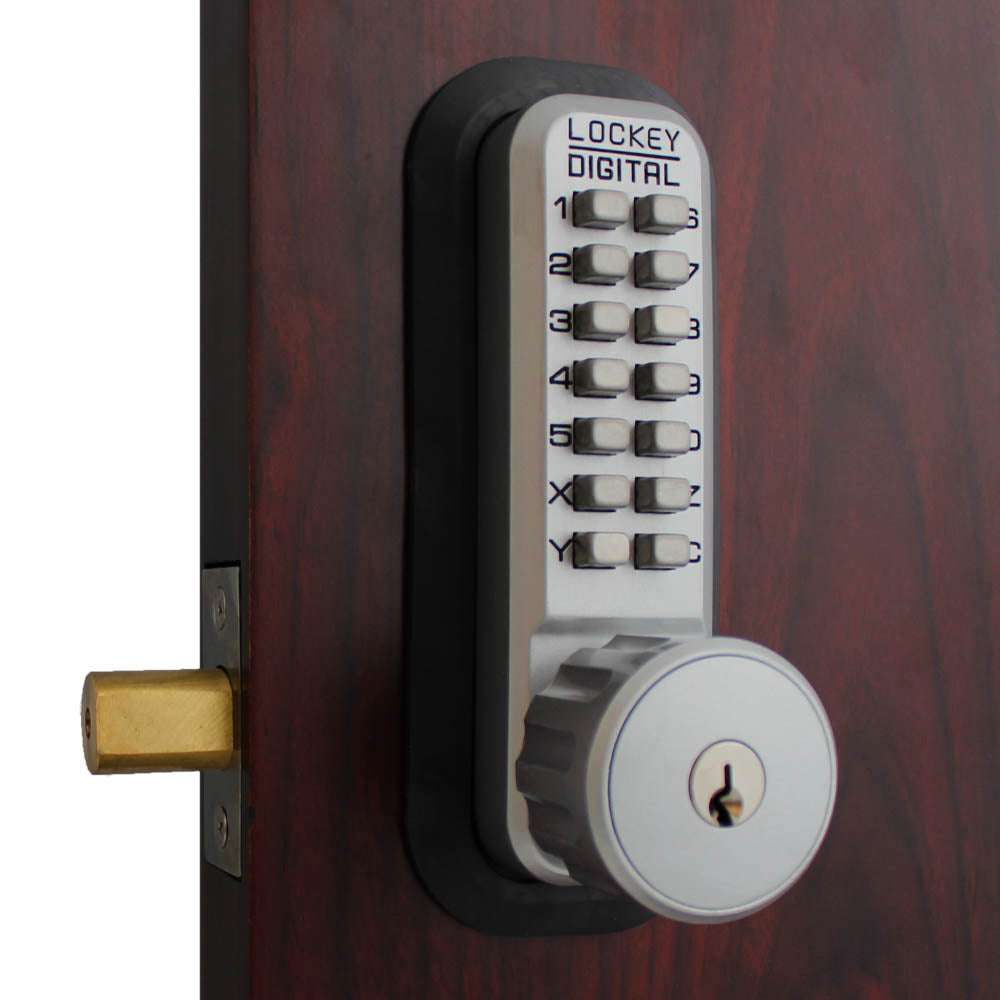

• Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN), White (WH)

Dimensions & Specifications

• Dimensions: 5 5/8″ H x 1 5/8″ W x 1 5/8″ D
• Total Coverage with Trim Plates: 6 1/2″ x 2 1/2″
• Deadbolt Size: Adjustable
• Door Thickness: 1 1/8” to 2″, up to 5″ with Extension Kit
• Covers standard 2 1/8″ door prep
• ​​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
• For Exterior & Interior Use
• Weather Resistant
• Lifetime Mechanical Warranty

Compatible With

• GB2500 Gate Box
• Key Override System
• Extension Kit
• Adjustable Deadbolt
• Drive-in Deadbolt
• T Cover 2500
• Metal Trim Plate
• Oversized Knob
• Push Pull Guard

Resources

Download Instructions
Download Spec Sheet
