Features

• Surface Mount Deadbolt Lock/Surface Mount Slide Bolt
• Narrow Stile
• One user code with thousands of possible combinations
• Both long and short bar included
• Easy to change combination
• Reversible Handing
• Will lock any hinged configuration
• Oversized Knob (OSK) Available

Options

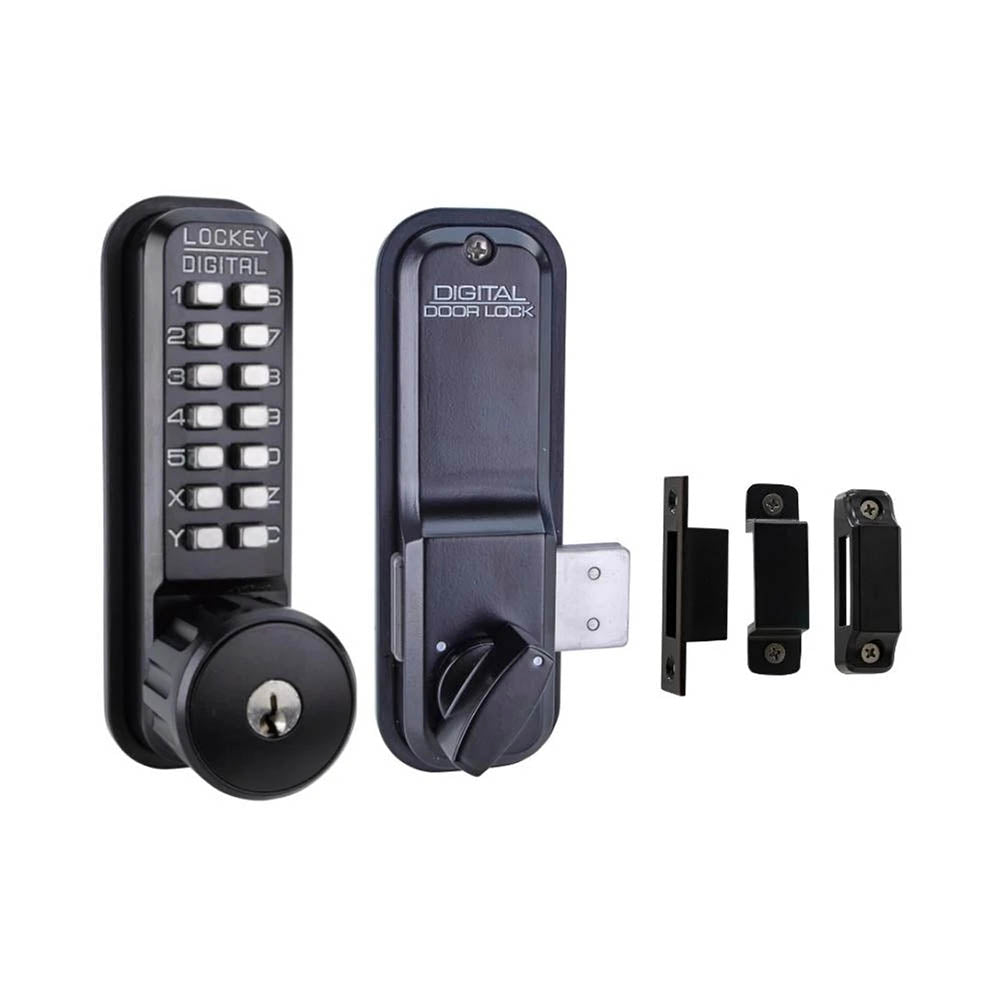

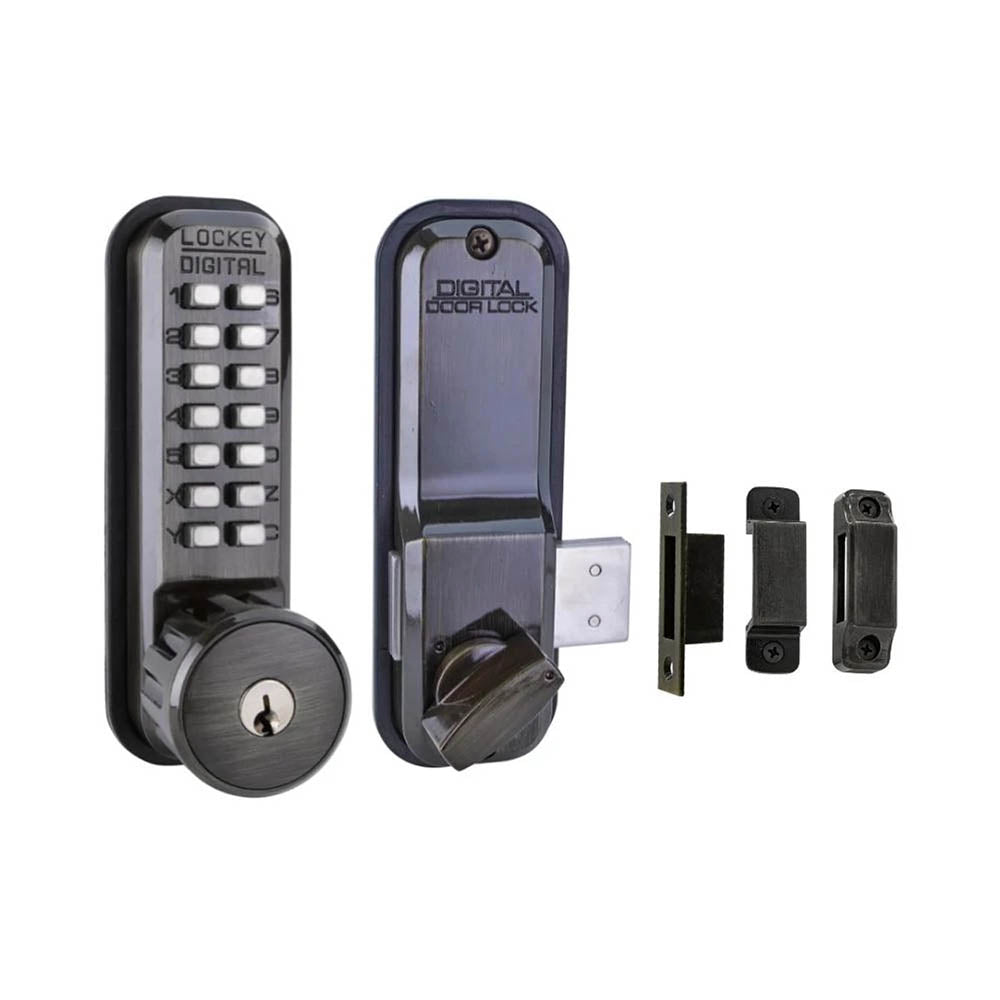

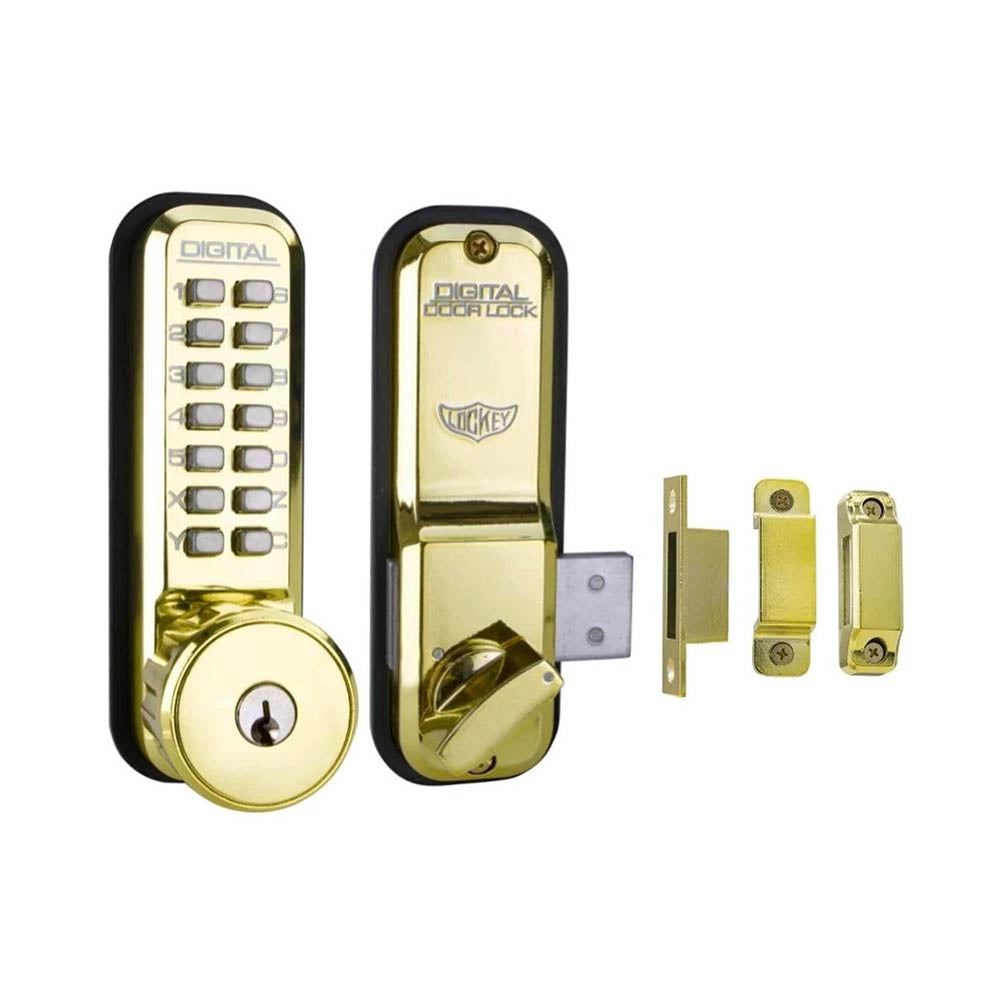

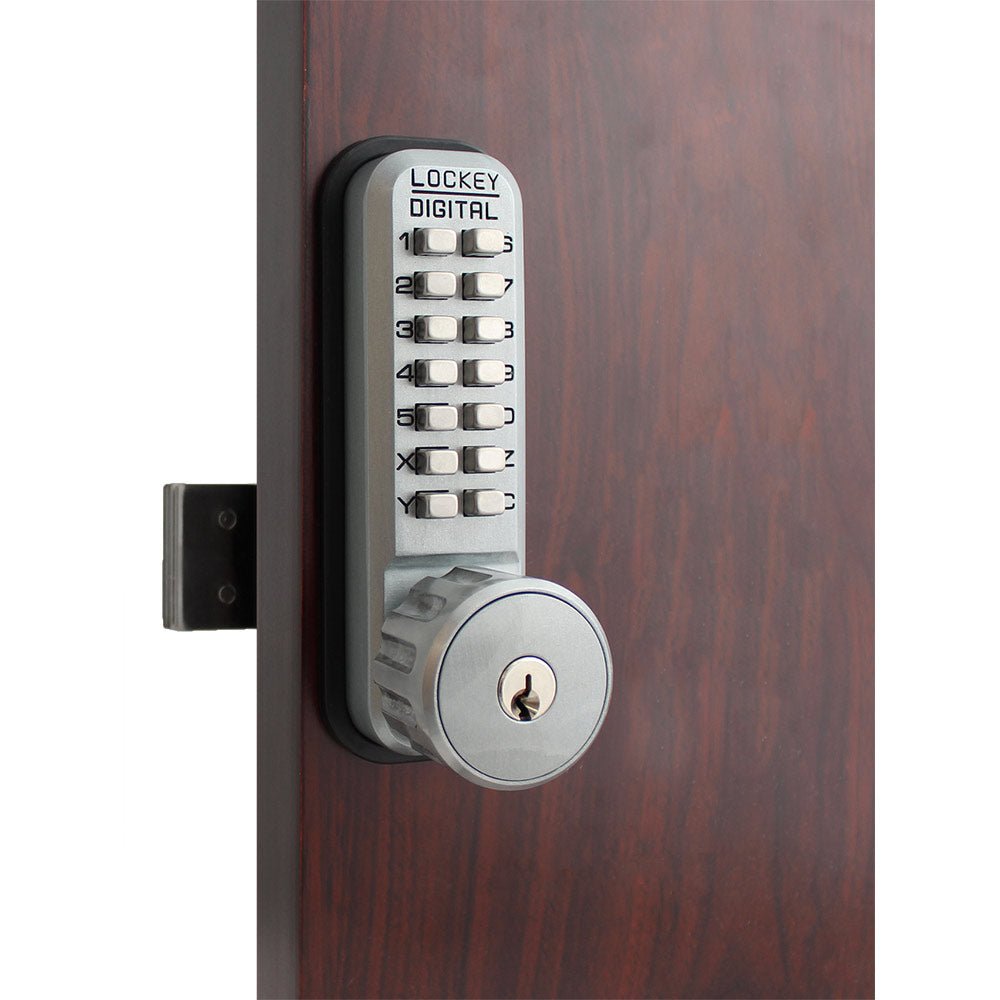

• Key Override: With or Without

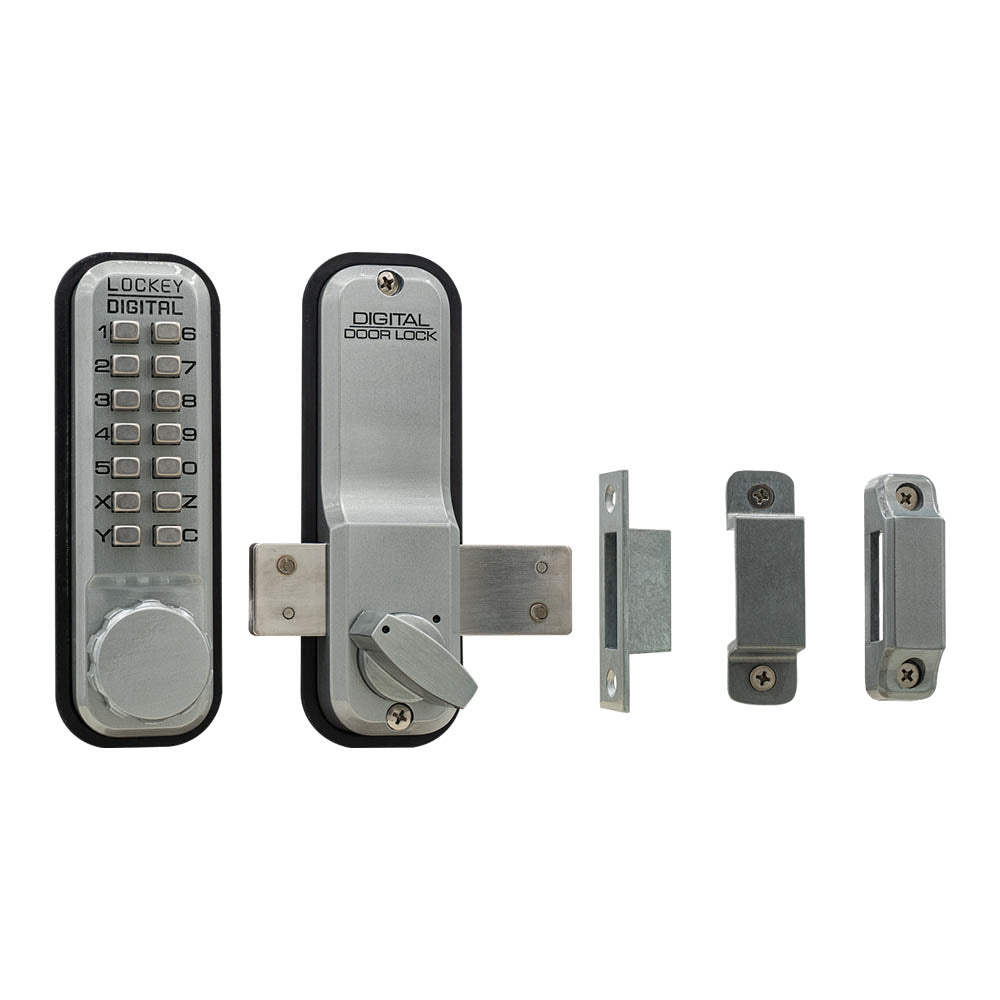

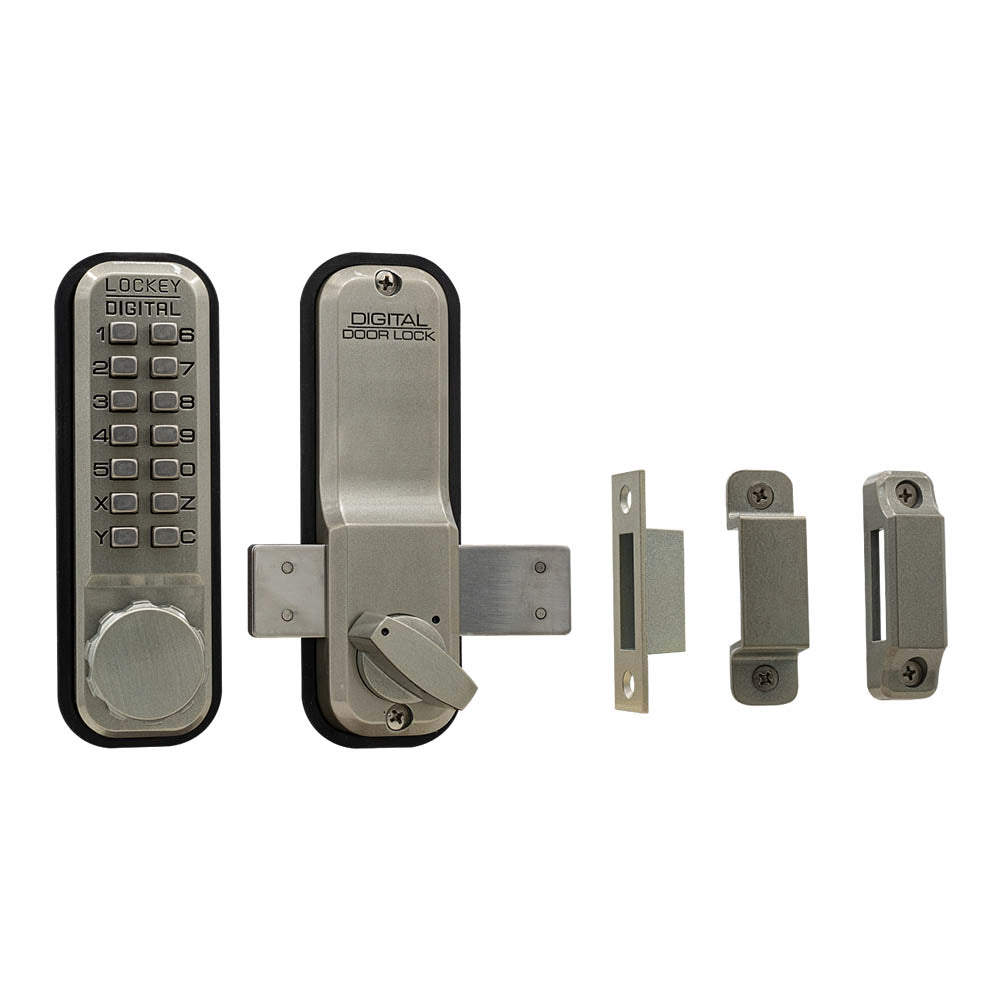

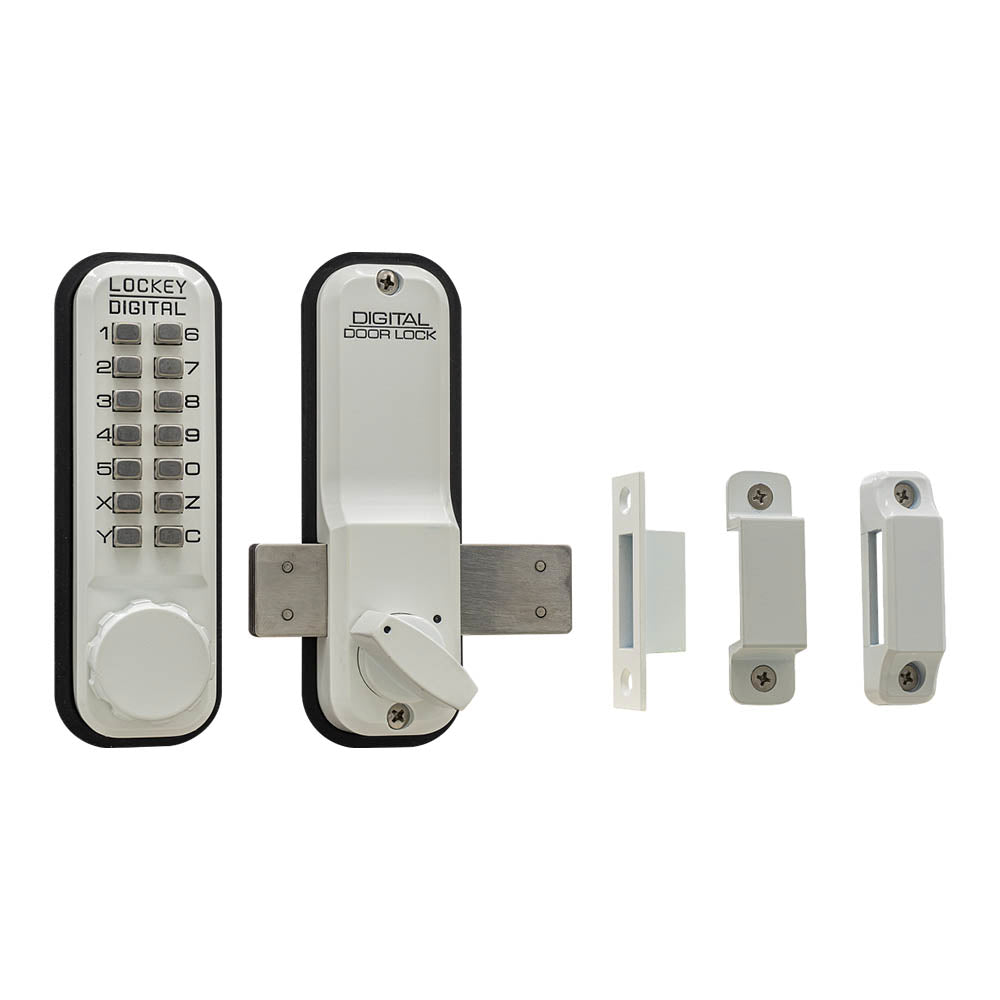

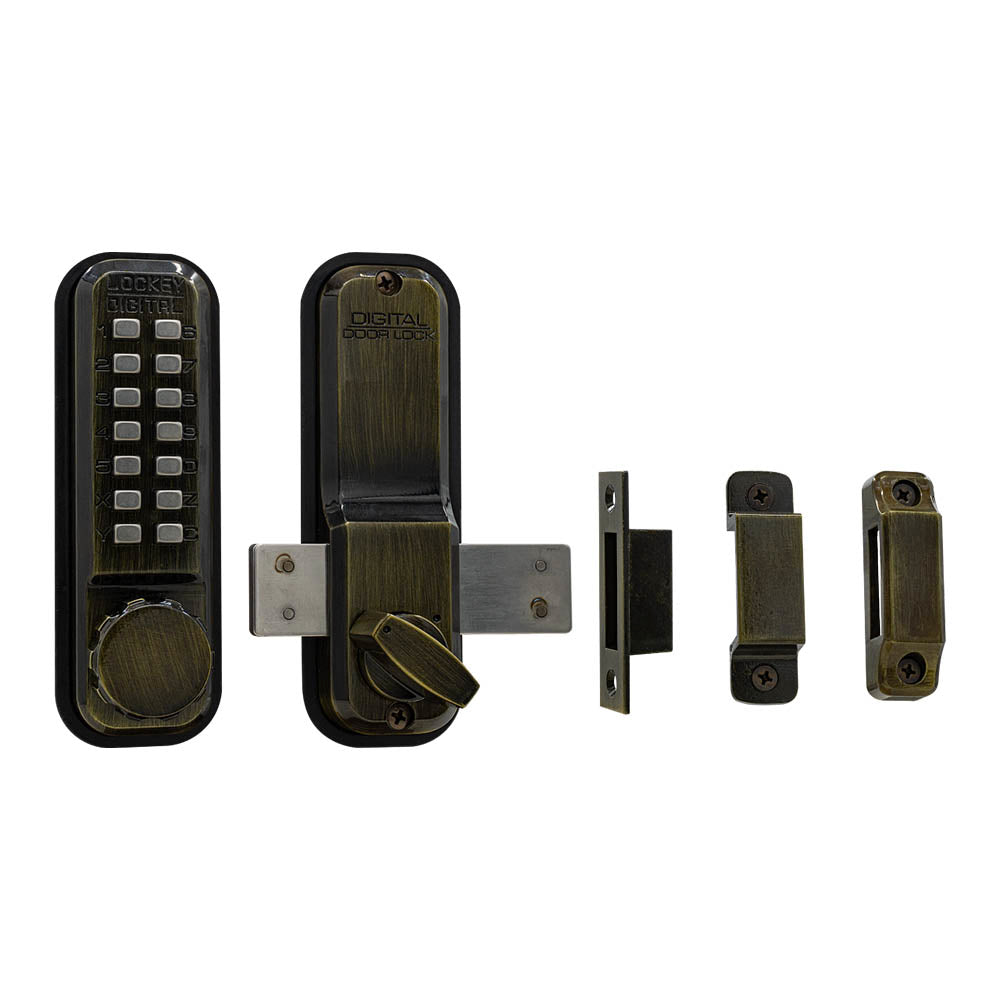

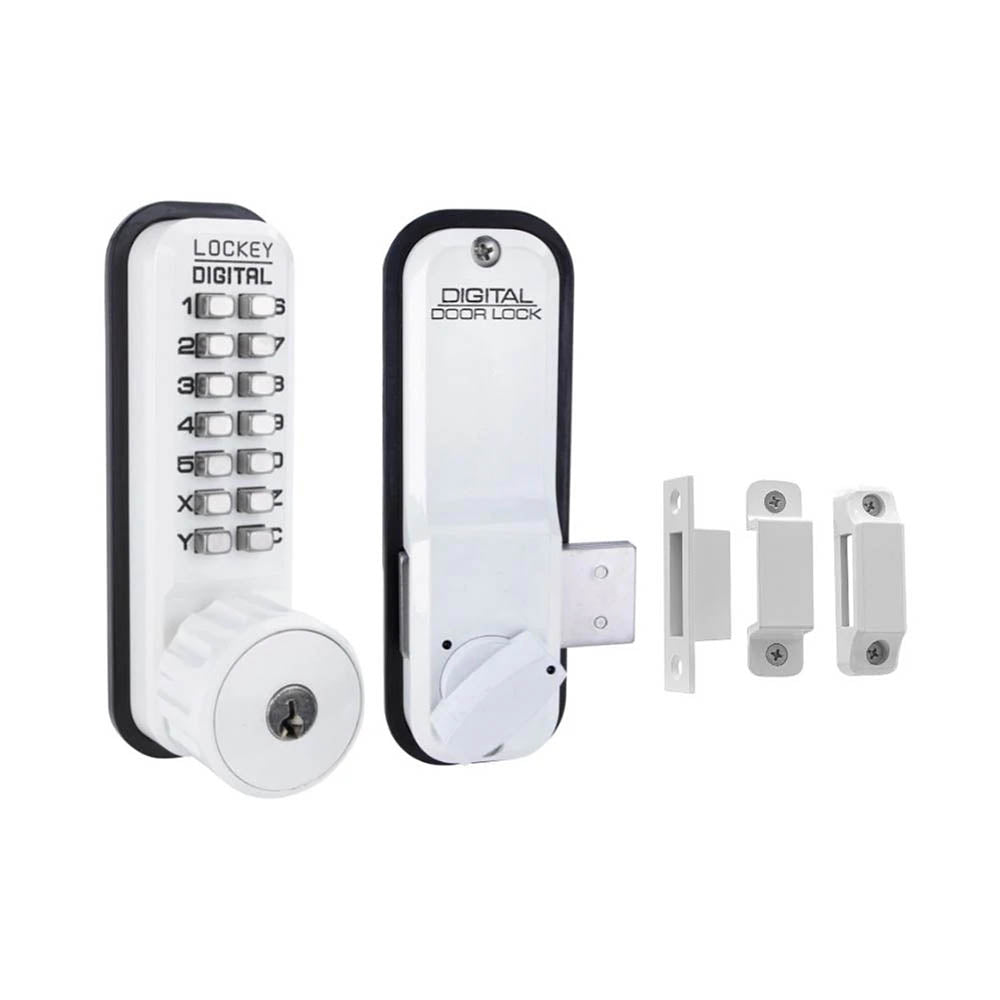

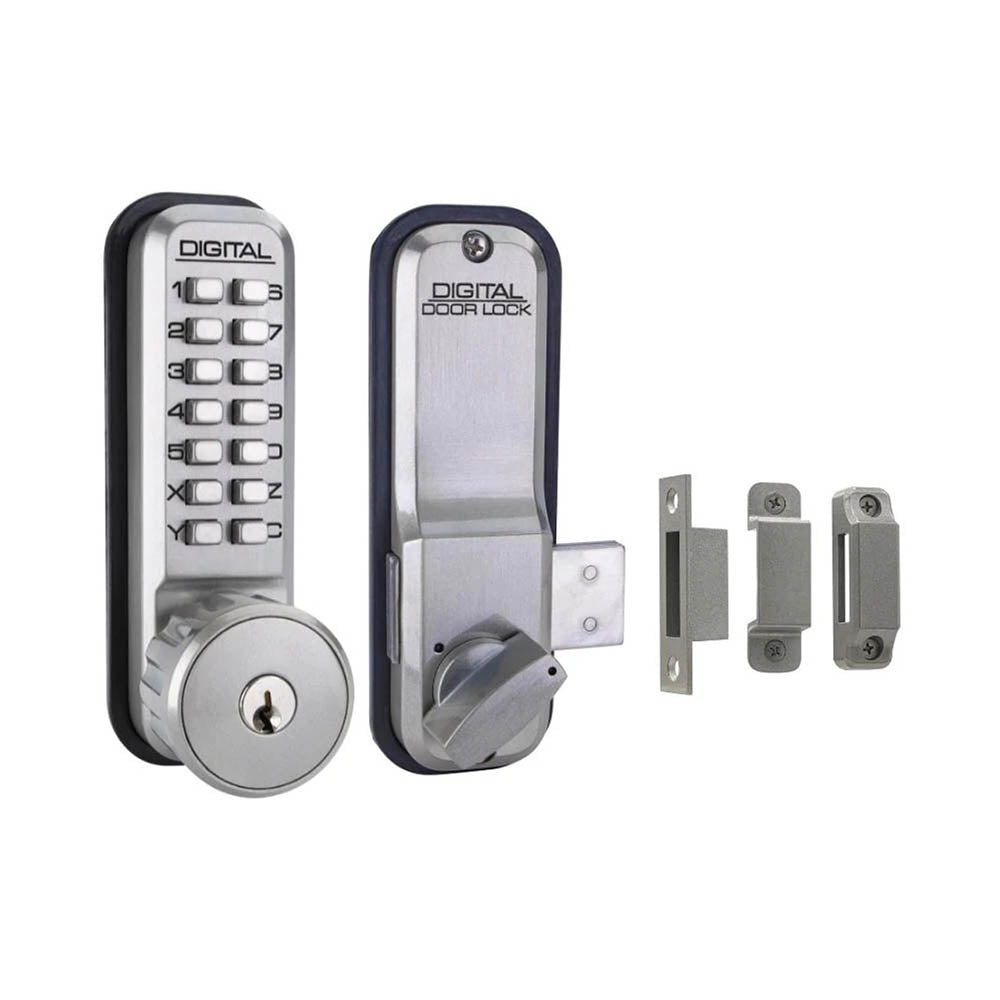

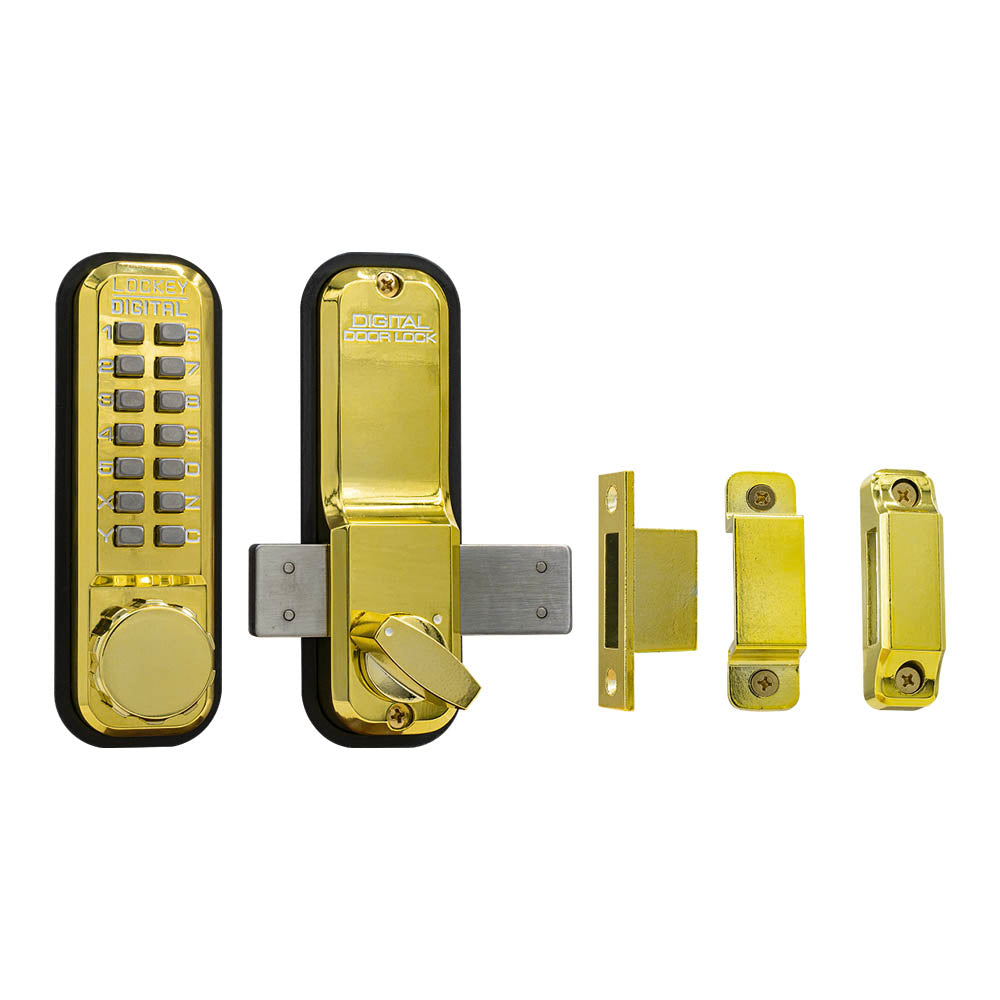

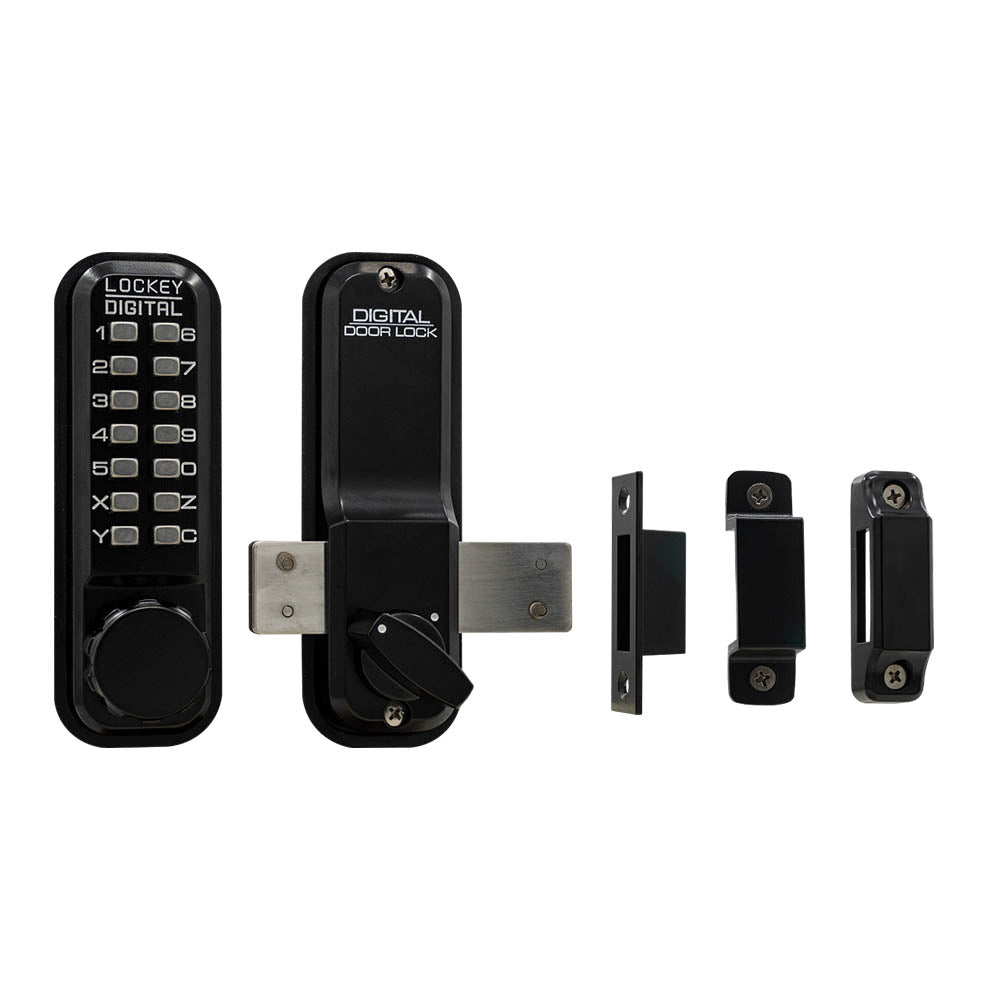

• Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN), White (WH)

Dimensions & Specifications

• Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
• Total Coverage with Trim Plates: 6″ x 2″
• Door Thickness: 1 1/8” to 2”, up to 5″ thick with Extension Kit (sold separately)
• Short Throw Bar: 7/8″
• Long Throw Bar: 2 1/4″
• Material: Zinc-plated Steel with Teflon coated stainless steel interior components
• Lifetime Mechanical Warranty
• For Exterior & Interior use
• Weather Resistant

Compatible With

• Key Override System
• Extension Kit
• T Cover 2500
• Metal Trim Plate
• Oversized Knob
• Push Pull Guard

Resources

Download Instructions
Download Spec Sheet
