$312.00
SKU 19-V-EO SP28 3 RHR

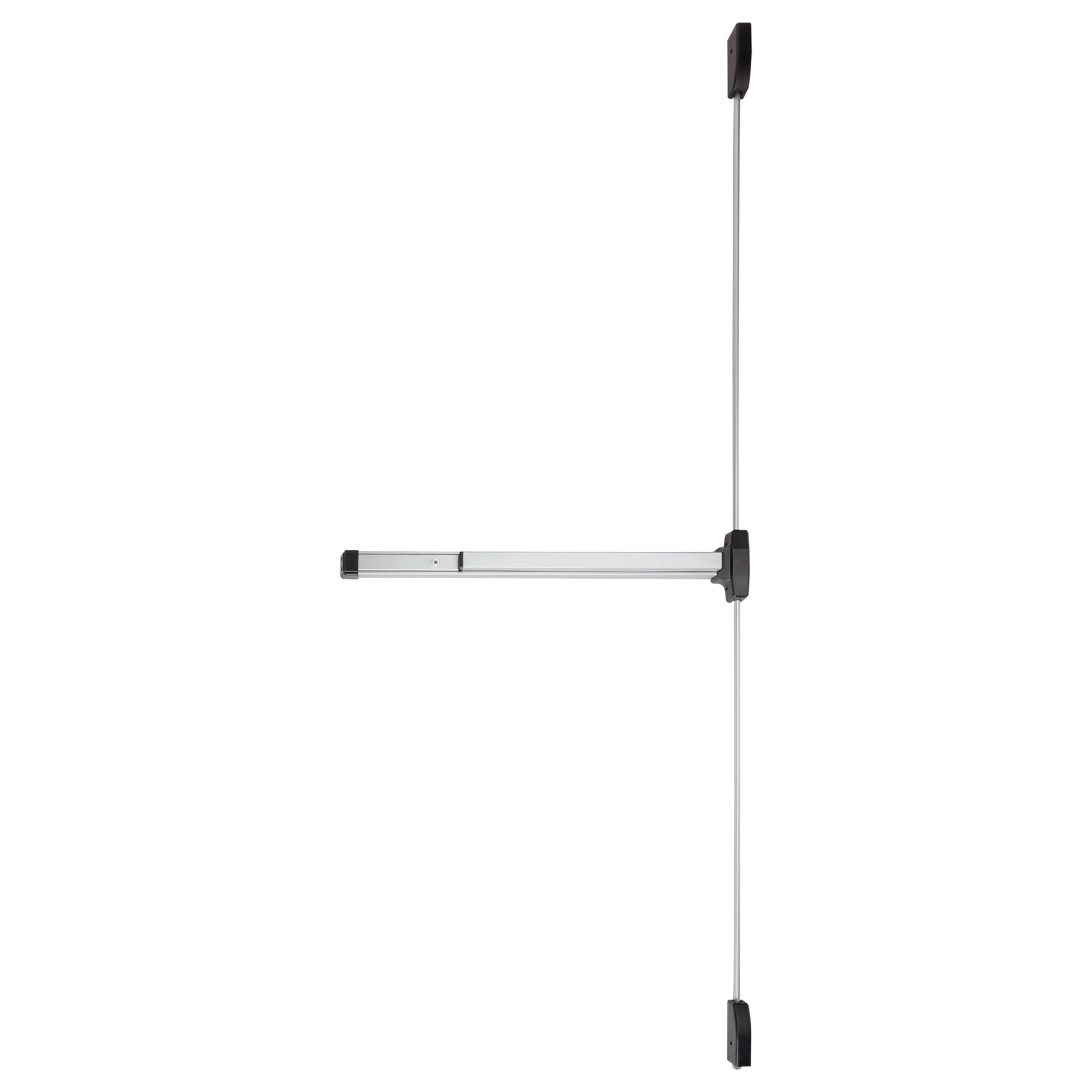

Falcon 19-V-EO Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, Hex Key Dogging, Sprayed Aluminum 19-V-EO SP28 3 RHR
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Grade 1 surface vertical rod exit device with a narrow stile pushpad. It is exit only and accepts various trim, so it fits openings where the outside needs separate trim or none at all. Falcon is an Allegion brand. Part 19-V-EO SP28 3 RHR is the Narrow Stile Pushpad, Hex Key Dogging, Exit Only, Accepts Various Trim, 36, Right Hand Reverse version in Sprayed Aluminum.
- Narrow Stile Pushpad
- Hex Key Dogging
- Exit Only
- Accepts Various Trim
- 36
- Right Hand Reverse
- Finish SP28 Sprayed Aluminum
- Grade 1
- Part number 19-V-EO SP28 3 RHR
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Falcon |
| Commercial/Residential | Light Duty Commercial |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | SP28 |
| Finish Description | Sprayed Aluminum |
| TECHNICAL SPECS | |
|---|---|
| SKU | 19-V-EO SP28 3 RHR |
| Series | 19 Series |
| Main Category | Exit Devices |
| Sub-Category 1 | Exit Device Only |
| Base Material | Varies |
| Cylinder Type | Keyless |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Right Hand Reverse |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 30 |
| Electronic | No |
| Function | Exit Only |
| Keyway | Not Applicable |
| Latch Throw (#) | 0.75 |
| Latch Description | Top - Bottom Latchbolts |
| Minimum Stile (#) | 1.75 |
| Screw Pack | Sex-Nuts and Bolts |
| Strike Description | Solid Catch Strike |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.75 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 40.25 |
| Box Height (#) | 11.25 |
| Box Weight (#) | 11.3 |
| Box Width (#) | 6.5 |
