Features

• Heavy Duty Keyless Lock- Completely Mechanical
• Heavy Duty Knob on both inside and outside
• One user code with thousands of possible combinations
• Changeable/reversible handing
• Passage Function (ability to leave door unlocked)
• Comes with adjustable spring latch – 2 3/8″ or 2 3/4″
• Covers a standard 2 1/8″ hole
• Magnet proof lock- cannot be manipulated with magnets
• New Style 1600- Extension Kit available for doors up to 5″ thick

Options

• Keypad: Single Combination, Double Combination (DC)

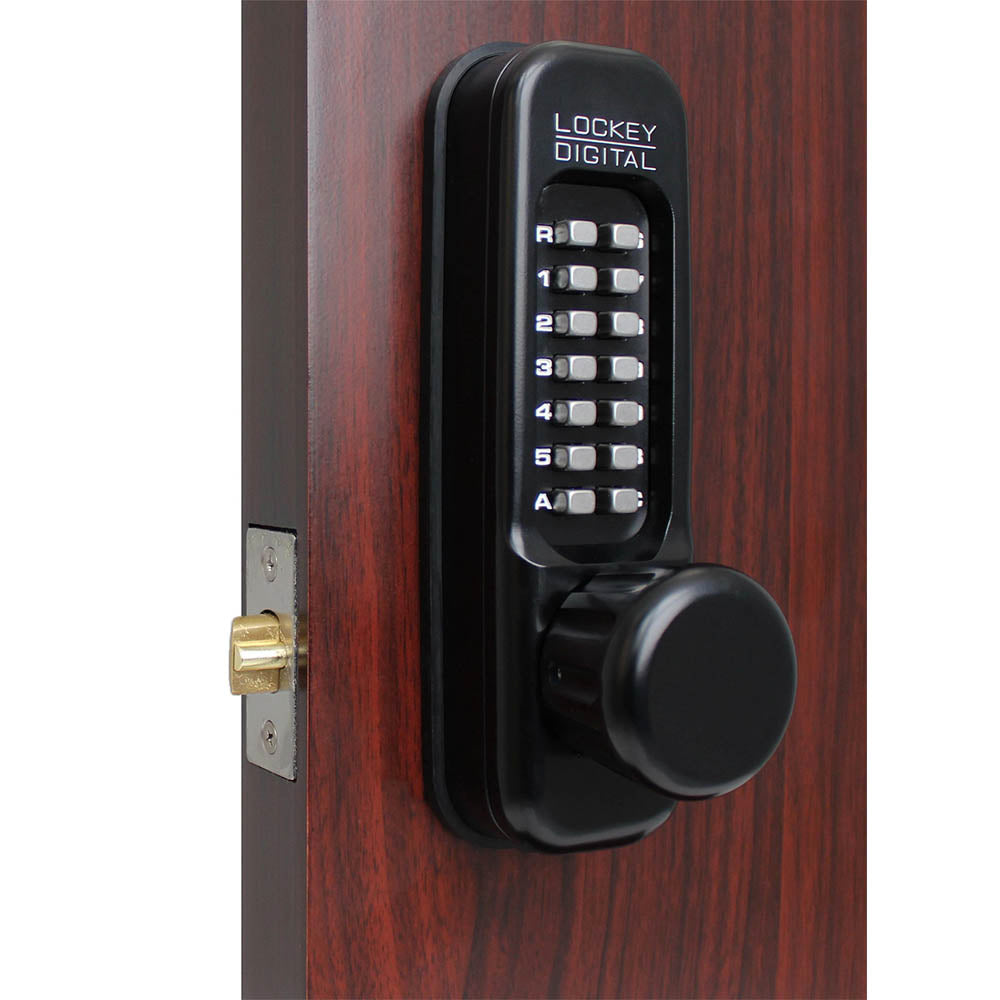

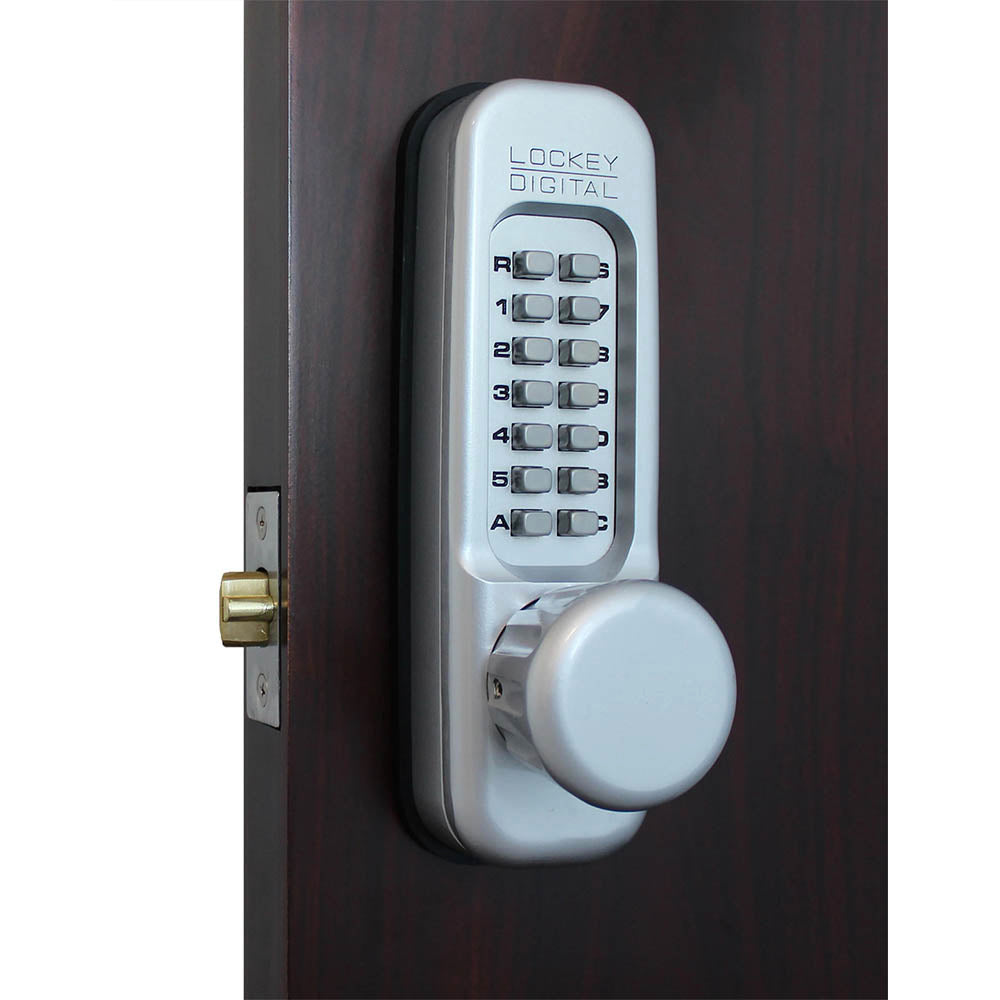

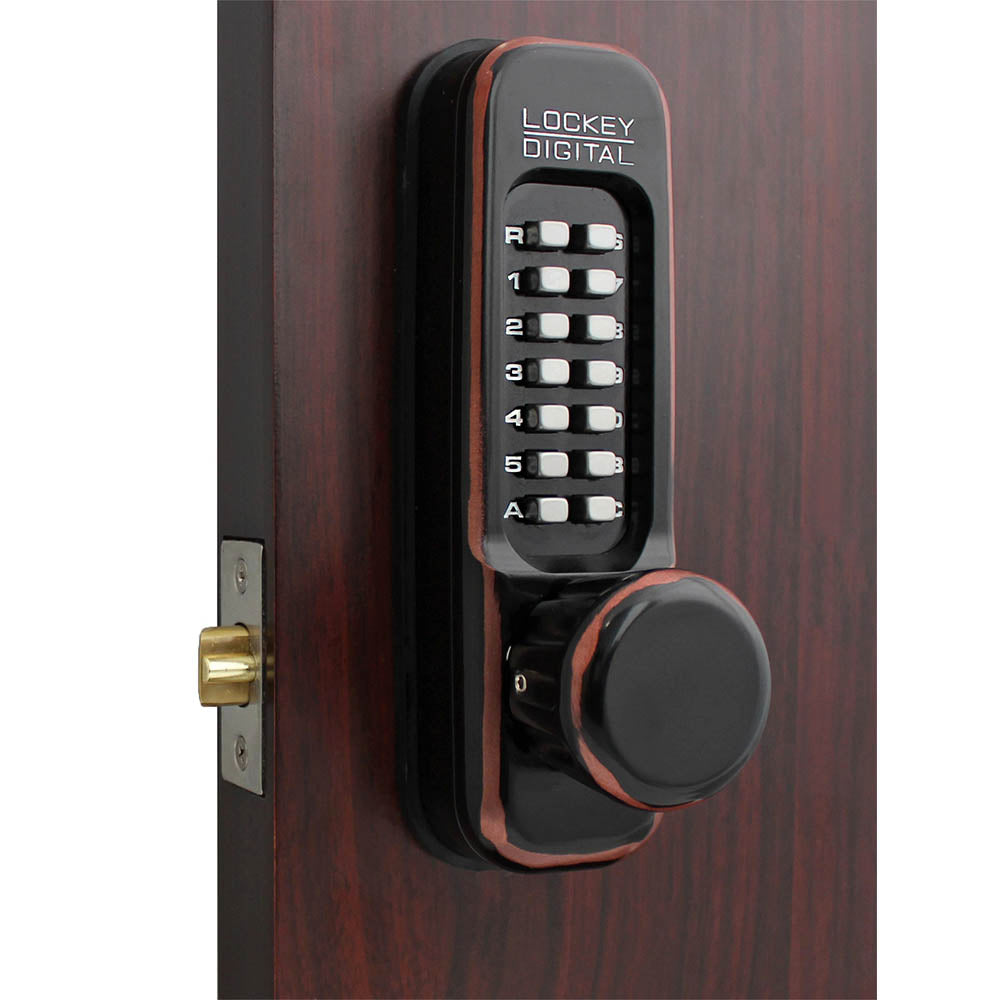

• Finishes: Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OIL)

Dimensions & Specifications

• Dimensions: 7 5/16″ H x 2 3/16″ W x 2 11/16″ D
• Total Coverage with Trim Plate: 7 1/2″ H x 2 1/2″ x 2 7/8″
• Knob Size: 2″ Diameter
• Door Thickness: 1 1/8” – 2″
• Material: Zinc-plated Steel with Teflon coated stainless steel interior components
• For Exterior & Interior Use
• Weather Resistant
• Lifetime Mechanical Warranty

Compatible With

• GB1150 Gate Box
• New Style Only: Extension Kit-1600
• Adjustable Latch-1600
• T Cover 1150
